500 Gallon Vertical Air Receiver, 36" Diameter, ASME Certified
500 Gallon Vertical Air Receiver, 36" Diameter, ASME Certified
SKU:VER-d5f2ac
500 Gal Vertical Air Receiver - ASME Certified, 36" Diameter, 165 psi Design Pressure
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
500 Gallon Vertical Air Receiver, 36" Diameter, ASME Certified
$1,999.99
Quantity: 1
Claim Your Seller Account
500 Gallon Vertical Air Receiver, 36" Diameter, ASME Certified
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial air storage with the 500 Gallon Vertical Air Receiver. Designed to ASME standards, this vertical tank features a 36-inch diameter, 165 psi design pressure, and standard design temperature of 450 ºF. With NPT threaded openings and a grey oxide primer finish, it meets high-pressure requirements up to 600 psi. Suitable for institutional use and compliant with industry standards.

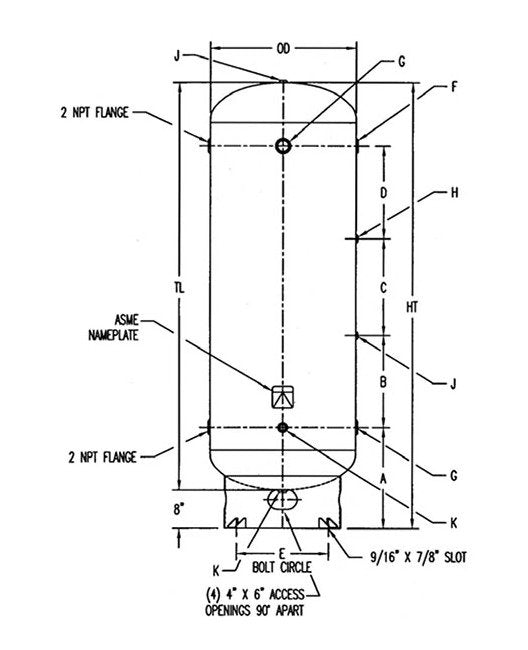

Product Specifications
Dimensions Dimension A
26 in
Dimensions Dimension B
28 in
Dimensions Dimension C
24 in
Dimensions Dimension D
29 in
Dimensions Dimension E
33 in
Dimensions Dimension F
VA
Note 0
Call for pricing on higher pressure. Larger receivers available to 3800 gallons.400RMT and 500RMT are 165 psi pressure rated
Openings Opening G
3 in
Openings Opening H
1/4 in
Openings Opening J
1/2 in
Openings Opening K
1 in
Specifications Design Pressure
165 psi
Specifications Diameter
36 in
Specifications Height
124 in
Specifications Industry Standards
ASME
Specifications Length
116 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
500 gal
