500 lb Capacity Mezzanine Package Lift with ANSI/ASME Compliance
500 lb Capacity Mezzanine Package Lift with ANSI/ASME Compliance
SKU:MEZ-92bd74
Efficient 500 lb Capacity Mezzanine Package Lift with Advanced Safety Features & Industry Standards Compliance
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

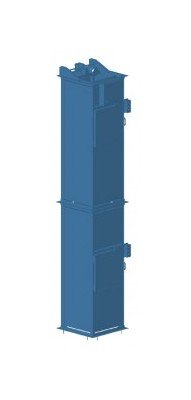

The 500 lb Capacity Mezzanine Package Lift by Advance Lifts is a robust four-post construction designed for efficiency and durability. Fully assembled at the factory, it offers a seamless tilt-up installation or as two or three stackable sections for quick setup. This lift features doors set to open at specific heights, integrates advanced safety features like load retention bars, and is equipped with a 3/4 hp motor for smooth operation. With a structural warranty of 5 years, electrical/hydraulic warranty of 1 year, and compliance with ANSI, ASME, ISO 9001:2015, and UL standards, this lift is an ideal choice for automated operations.
Product Specifications
Accessories Accessories
Landing-Lockâ¢, Gates & Enclosures, Controls, Receptacle Charts and Bi-Parting GatesLanding Lockâ¢: Advance lifts has recently developed a Landing Lock⢠for our BFL mezzanine access scissor lift systems. We have a patent pending on the design and the name is trade mark protected. The design consists of two (2) locking pins mounted on the lift platform that are automatically engaged into two (2) supports that are integrated into the lift enclosure system to firmly hold the platform at the upper elevation. Sway and deflection are eliminated during loading/unloading operations. This device can be used to secure a platform at any grade level such as mezzanine floors, building floors or machine interfaces where loads are transferred from one surface to another surface.Gates and Enclosures: We are now manufacturing our own gates and enclosures. By moving the production of the gates and enclosures in house we have shortened our drawing and delivery times. Besides the quicker delivery times, this has allowed us to incorporate some design changes that will improve the fit and finish and make installation easier. The most noticeable change will be the incorporation of leveling feet. Besides making it very easy to deal with un-level floors, they also make it easier to adjust for small surprises like mezzanine lag bolts.All enclosures are custom designs. The main components are universal, but each local authority may tweak the codes to suit their tastes, so it is our job to provide a wide array of options to make it easier to comply with local needs.Our engineers and service people listen carefully to installers to be sure we adopt all the labor saving ideas that we hear about to make installations as quick and trouble free as possible.Features and BenefitsOur designs comply with all applicable ASME & ANSI standards Panel inserts are flattened expanded metal for excellent visibility Panel perimeters are angle iron with external access to mounting slots (Advance supplies 1/4" flanged nuts and flanged bolts for 5/16" slots) Two adjustable feet for each bottom panel for easy leveling Electro mechanical gate interlocks are NEMA 4 rated All metal components are fully primed & baked enamel finishes.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
All of the controllers are assembled in our UL listed panel shopPackage lift units conform to all applicable ANSI and ASME codesMotors are equipped with integral brake locksUnits are equipped with double chainsPackage lift units have flattened expanded enclosures attached at the factoryPlatforms have dual surface guides in all four (4) cornersCall-send-stop buttons mounted at each levelVRC lift platforms are equipped with load retention bars on all four (4) sidesPower drive units mounted in the top of each unit, other configurations are available
Specifications Capacity
500 lb
Specifications Carriage Height
36 in
Specifications Electricalhydraulic Warranty
1 Years
Specifications Industry Standards
American National Standards Institute (ANSI) | American Society of Mechanical Engineers (ASME)International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Lowered Height
30 in
Specifications Maximum Platform Size
42 x 42 in
Specifications Maximum Travel Size
24 ft
Specifications Minimum Overall Depth
42 in
Specifications Minimum Overall Width
39 in
Specifications Minimum Platform Size
36 x 36 in
Specifications Motor Power
3/4 hp
Specifications Overall Travel Height
92+ in
Specifications Speed
30 ft/min
Specifications Structural Warranty
5 Years
