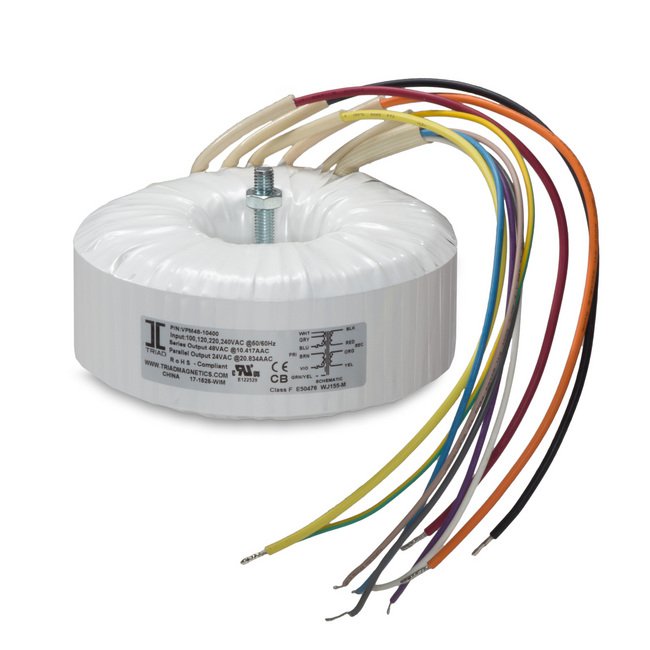

500 VA Power Toroidal Medical Transformer
500 VA Power Toroidal Medical Transformer
SKU:POW-1597b1
Versatile 500VA Medical Transformer with Class F Insulation & Compliance with Industry Standards
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
500 VA Power Toroidal Medical Transformer
$199.99
Quantity: 1
Claim Your Seller Account
500 VA Power Toroidal Medical Transformer
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 500 Voltage-Ampere Power VPM Series Toroidal Medical Transformer is a versatile solution for both consumer and institutional buyers. With primary voltages ranging from 100V to 240V and secondary connections in parallel or series, this transformer offers flexibility in various applications. It features Class F insulation, 4 KV dielectric isolation, low leakage current, and low stray fields, ensuring reliable performance and safety. Meeting CE, CRU US standards, and RoHS compliance, this transformer is ideal for medical applications while offering custom design options.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
500 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
64 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
147 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
500 V·A
Specifications Secondary Voltage In Parallel
120 V at 4.16 A
Specifications Secondary Voltage In Series
240 V CT at 2.08 A
Specifications Regulation
4.20 %
Specifications Temperature Rise
50 ºC
Specifications Weight
4.6 kg
