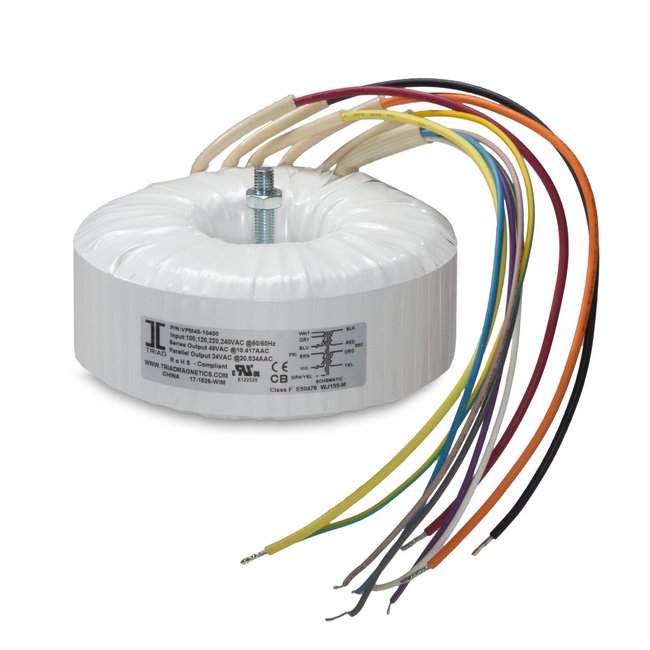

The 500 VA Toroidal Medical Power VPM Series Transformer is a reliable power solution designed for medical equipment. With primary voltage options of 100V, 120V, 220V, or 240V and secondary voltage variations for series or parallel connections, this transformer offers low leakage current, low stray fields, and excellent dielectric isolation. Meeting Class F insulation standards and boasting an outside diameter of 147mm, this transformer ensures safety and efficiency for medical applications.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
500 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
64 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
50 V | 100 V
Specifications Outside Diameter
147 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
500 V·A
Specifications Secondary Voltage In Parallel
50 V at 10.0 A
Specifications Secondary Voltage In Series
100 V CT at 5.0 A
Specifications Regulation
4.20 %
Specifications Temperature Rise
50 ºC
Specifications Weight
4.6 kg
