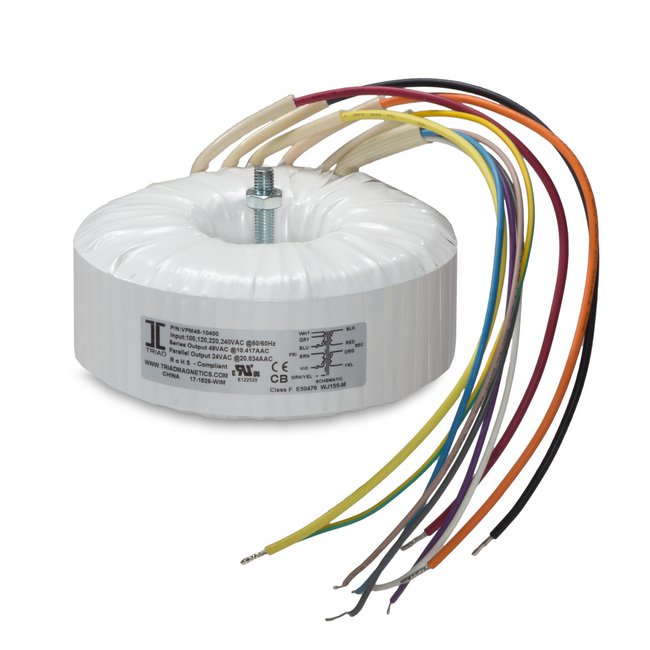

500 VA Toroidal Medical Transformer
500 VA Toroidal Medical Transformer
SKU:POW-5631f9
Reliable 500 VA Toroidal Medical Transformer with versatile voltage configurations and industry-standard compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
500 VA Toroidal Medical Transformer
$129.99
Quantity: 1
Claim Your Seller Account
500 VA Toroidal Medical Transformer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 500 VA Power VPM Series Toroidal Medical Transformer is designed for precision and reliability. With primary voltage options ranging from 100V to 240V and secondary voltage configurations for series or parallel connection, this transformer ensures stable power output. Meeting industry standards such as CE and CRU®US, with Class F insulation and 4kV dielectric isolation, it guarantees low leakage current and stray fields, making it ideal for medical applications.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
500 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
64 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
24 V | 48 V
Specifications Outside Diameter
147 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
500 V·A
Specifications Secondary Voltage In Parallel
24 V at 20.8 A
Specifications Secondary Voltage In Series
48 V CT at 10.4 A
Specifications Regulation
4.4 %
Specifications Temperature Rise
50 ºC
Specifications Weight
4.5 kg
