5000-Gallon Vertical Air Receiver Tank, 165 psi - Vertical Air Receivers 660-5000 Gallons

Name: 5000-Gallon Vertical Air Receiver Tank, 165 psi - Vertical Air Receivers 660-5000 Gallons
Brand: Compressed Air Systems, Inc.
SKU: REC-a778d3
Price: 2499.99 USD
Availability: OutOfStock

SKU:REC-a778d3

High-capacity 5000-Gallon Vertical Air Receiver Tank with 165 psi MWP for efficient air storage in industrial settings.

$2,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

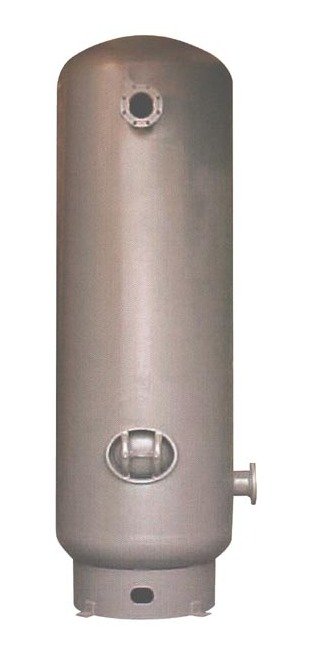

The 5000-Gallon Vertical Air Receiver Tank with a Maximum Working Pressure (MWP) of 165 psi is an industrial-grade solution designed for efficient air storage in large volumes. With a nominal capacity of 5000 gallons (668.45 ft³) and a sturdy construction, this tank ensures reliable performance and durability. Its dimensions - 84.00" O.D. x 240.00" HT - provide ample storage without occupying excessive floor space. Featuring multiple N.P.T. openings and a robust design, this tank is ideal for high-pressure air storage applications.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

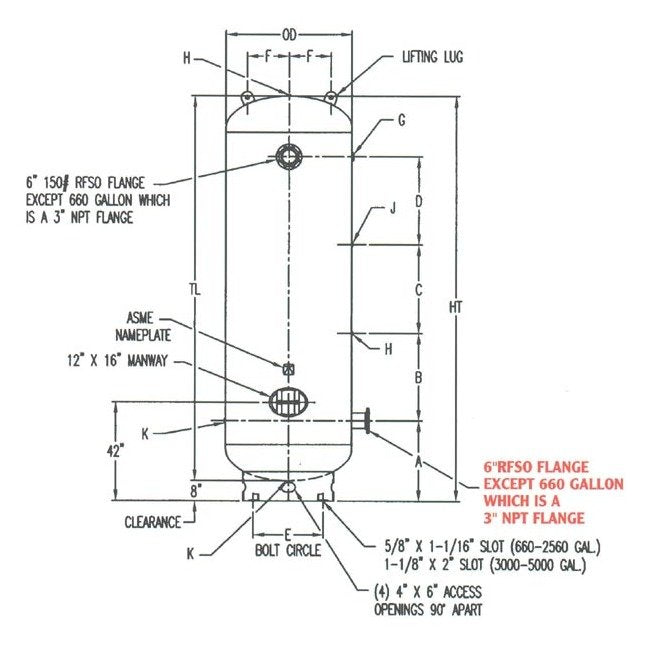

Specifications Dimension A

46.00 inches

Specifications Dimension B

50.00 inches

Specifications Dimension C

50.00 inches

Specifications Dimension D

56.00 inches

Specifications Dimension E

70.00 inches

Specifications Dimension F

28.00 inches

Specifications Ht

240.00 inches

Specifications Mawp

165 psi

Specifications Nominal Capacity

5000 gal | 668.45 ftÂ³

Specifications Npt Opening G

3 inches

Specifications Npt Opening H

1 inches

Specifications Npt Opening J

1/4 inches

Specifications Npt Opening K

1 1/4 inches

Specifications Od

84.00 inches

Specifications Tl

232.00 inches

Specifications Tw

10500

5000-Gallon Vertical Air Receiver Tank, 165 psi - Vertical Air Receivers 660-5000 Gallons
