5000 Series Bronze Solenoid Valve
5000 Series Bronze Solenoid Valve
SKU:ATK-de77a1
High-performance 5000 Series Bronze Solenoid Valve for reliable medium-pressure liquid control. Operates at 5-500 psig with -15 to 400°F temp range. Ideal for diverse fluid applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
5000 Series Bronze Solenoid Valve
$289.99
Quantity: 1
Claim Your Seller Account
5000 Series Bronze Solenoid Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5000 Series Bronze Solenoid Valve is a high-performance, pilot-operated valve designed for medium-pressure applications. Constructed with bronze material and Viton® seals, it offers reliable operation for liquid media with viscosity ranging from 41 to 150 SUS. With an operating pressure of 5 to 500 psig, temperature range from -15 to 400°F, and Cv of 43.0, this valve ensures precise control and durability. It features a normally closed position, 2-inch female NPT connection, and Class H coil insulation for extreme temperature environments. Ideal for a variety of fluid applications, the 5000 Series Valve is a versatile and efficient solution for institutional and government procurement needs.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 in
Specifications Connection Type
Female NPT
Specifications Cv
43.0

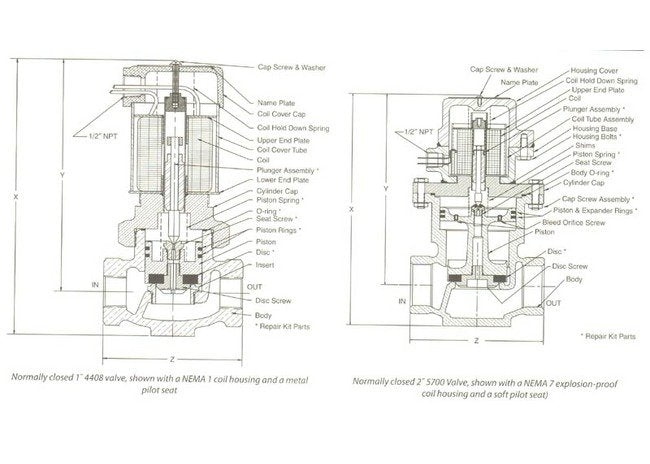

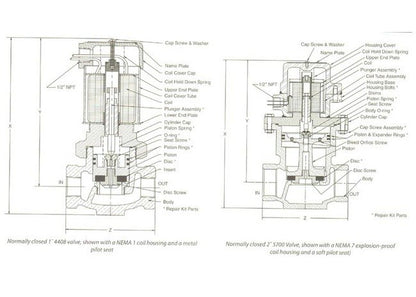

Specifications Dim X
12 5/8 in
Specifications Dim Y
9 3/4 in
Specifications Dim Z
6 1/8 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
2 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
5000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
