5000 Series Bronze Solenoid Valve, 2 1/2-inch, Gas, NPT Female
5000 Series Bronze Solenoid Valve, 2 1/2-inch, Gas, NPT Female
SKU:ATK-1184d6
Durable 5000 Series Solenoid Valve for medium pressure gas applications. Offers reliable operation with bronze construction and Teflon® seals.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
5000 Series Bronze Solenoid Valve, 2 1/2-inch, Gas, NPT Female
$279.99
Quantity: 1
Claim Your Seller Account
5000 Series Bronze Solenoid Valve, 2 1/2-inch, Gas, NPT Female
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5000 Series Solenoid Valve is a robust solution for medium pressure fluid control applications, offering a pressure range of 5 to 500 psig (0.4 to 34.5 bar). Crafted from durable bronze with Teflon® seat and seal materials, this valve ensures reliable performance with gas media. With a 3-inch main seat orifice and Cv of 63.0, it provides efficient fluid flow. Operating in temperatures from -423 to 500 °F (-253 to 260 °C), this normally open valve is suitable for a wide range of environments. Compliant with Class H coil insulation standards, it comes with a standard coil housing for secure operation.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
63.0

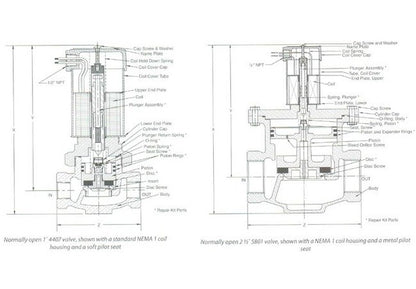

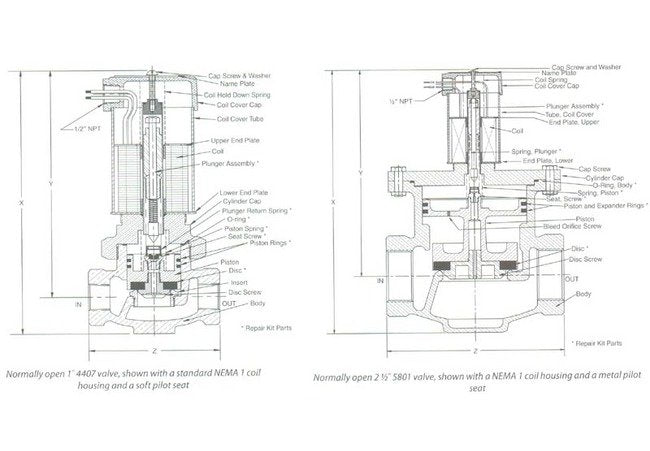

Specifications Dim X
15 1/2 in
Specifications Dim Y
11 5/8 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Teflon®
Specifications Series
5000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
