5000 Series Bronze Solenoid Valve, 3" NPT Female
5000 Series Bronze Solenoid Valve, 3" NPT Female
SKU:ATK-64d1cf
High-performance 5000 Series Bronze Solenoid Valve for medium pressure applications with 3" NPT connection, EPR seat & seal, and wide temperature range of -65 to 300°F.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
5000 Series Bronze Solenoid Valve, 3" NPT Female
$349.99
Quantity: 1
Claim Your Seller Account
5000 Series Bronze Solenoid Valve, 3" NPT Female
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5000 Series Bronze Solenoid Valve is a high-performance pilot-piston valve designed for medium pressure applications. Constructed with durable bronze material and EPR seat & seal, this valve ensures reliable operation with operating pressures ranging from 5 to 500 psig. It features a 3" NPT female connection, normally open position when de-energized, and a wide temperature range of -65 to 300 °F. With a Cv of 71.0, this valve is ideal for liquid up to 40 SUS. Suitable for various fluid types, this valve offers exceptional performance and longevity in demanding industrial environments.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3 in
Specifications Connection Type
Female NPT
Specifications Cv
71.0

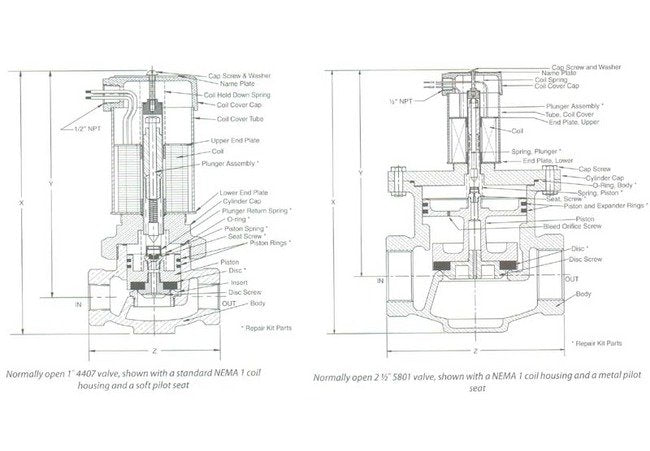

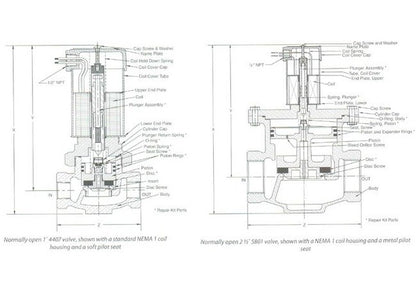

Specifications Dim X
15 1/2 in
Specifications Dim Y
11 5/8 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
EPR
Specifications Series
5000
Specifications Temperature Range
-65 to 300 ºF | -54 to 149 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
