5000 Series High-Pressure Solenoid Valve
5000 Series High-Pressure Solenoid Valve
SKU:ATK-6f95df
Reliable 5000 Series Solenoid Valve for medium pressure applications, offers secure shut-off and wide fluid compatibility. Operates at -65 to 275°F.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
5000 Series High-Pressure Solenoid Valve
$299.99
Quantity: 1
Claim Your Seller Account
5000 Series High-Pressure Solenoid Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5000 Series Solenoid Valve is a robust bronze valve suitable for medium pressure applications. With an operating pressure range of 5 to 500 psig, it offers reliable performance for various fluids including gas, liquid, steam, and cryogenics. Featuring normally closed configuration and Buna N seat & seal material, this valve ensures secure shut-off and compatibility with liquid up to 40 SUS. Its Class H coil insulation and single-wound molded coil type make it suitable for temperatures ranging from -65 to 275°F, meeting stringent industry standards.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
2 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
63.0

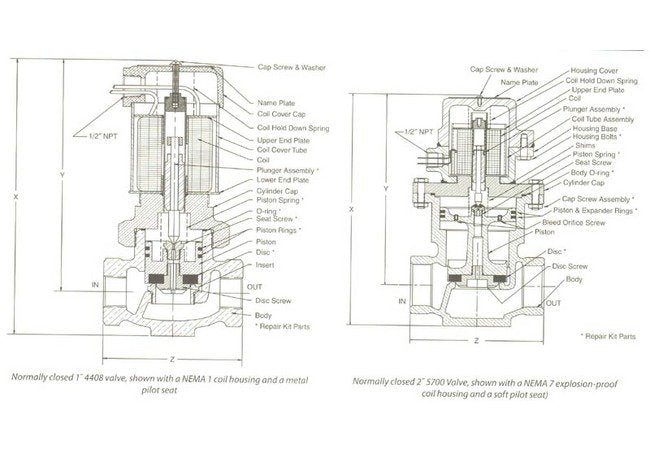

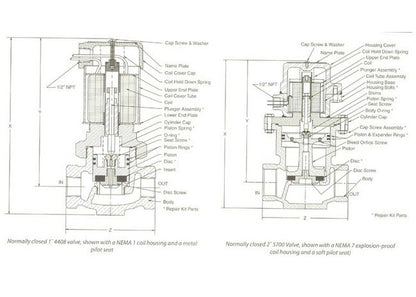

Specifications Dim X
14 3/8 in
Specifications Dim Y
10 1/2 in
Specifications Dim Z
8 1/2 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
3 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
5000
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
