500mm x 1000mm Belt Conveyor with Booster

Name: 500mm x 1000mm Belt Conveyor with Booster
Brand: TPC Packaging Solutions
SKU: PAC-936646
Price: 2399.99 USD
Availability: OutOfStock

SKU:PAC-936646

Efficient 500mm x 1000mm Belt Conveyor with 0.5m Booster for gentle transport, customizable to fit varied requirements.

$2,399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

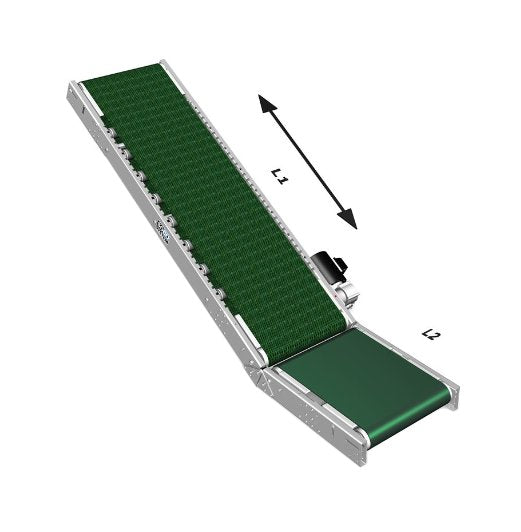

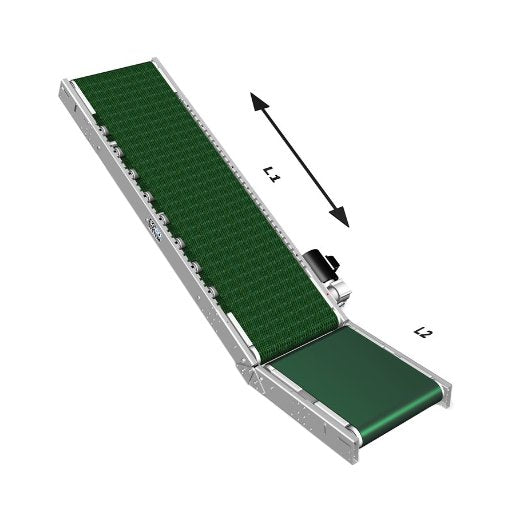

The 500mm Width, 1000mm Length Belt Conveyor with 0.5m Booster offers gentle transport in both inclined and horizontal orientations, customized to your requirements. Built with Electro-Galvanized Steel frames and equipped with a Standard Conveying Gear (40:1) for efficient operation at 10m/min speed. This conveyor, part of our Belt Conveyors with Booster line, comes with accessories like Supports for Belt Conveyors and Driven Roller Conveyors, ensuring versatility and ease of use. Contact our sales department for specialized belts and bedding options to meet your specific needs.

Product Specifications

Accessories Accessories

Supports for Belt Conveyors and Driven Roller Conveyors

Additional Information Additional Information

BeltAs standard, the booster is fitted with a smooth belt and the conveyor with a grip belt. 0.5 m long boosters wider than 400 mm are always delivered with belts with guide profile.Contact our sales department regarding food belts and other belt types.BeddingAs standard, 0.5 m long and 400 mm wide boosters are supplied with grooved plate bedding. Conveyors and boosters of 1 m are supplied with roller bedding.Contact our sales department if another bedding is required.OrderingChoose a booster of the desired width and length (the booster is the horizontal conveyor).Then choose the length of the incline conveyor. The item number is stated under the booster.Then choose the belt.Ideal for wide transfer angles.

Dimensions Booster Length L2

0.5 m

Dimensions Conveyor Length L1

1000 mm

Dimensions Width

500 mm

Note Note

A minimum of three supports is required for a conveyor with booster.As standard, the motor is fitted on the left side of the booster. For mounting on the other side, please specify this upon ordering.Subject to alteration.

Specifications Frames

Electro-Galvanized Steel

Specifications Standard Conveying Gear 401

10 m/min

500mm x 1000mm Belt Conveyor with Booster
