500V Metallized Film Capacitors CHL Series
500V Metallized Film Capacitors CHL Series
SKU:MET-d93885
Empower electronics with 500V Metallized Film Capacitors: reliable, high-performance, and compact design for versatile applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
500V Metallized Film Capacitors CHL Series
$49.99
Quantity: 1
Claim Your Seller Account
500V Metallized Film Capacitors CHL Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

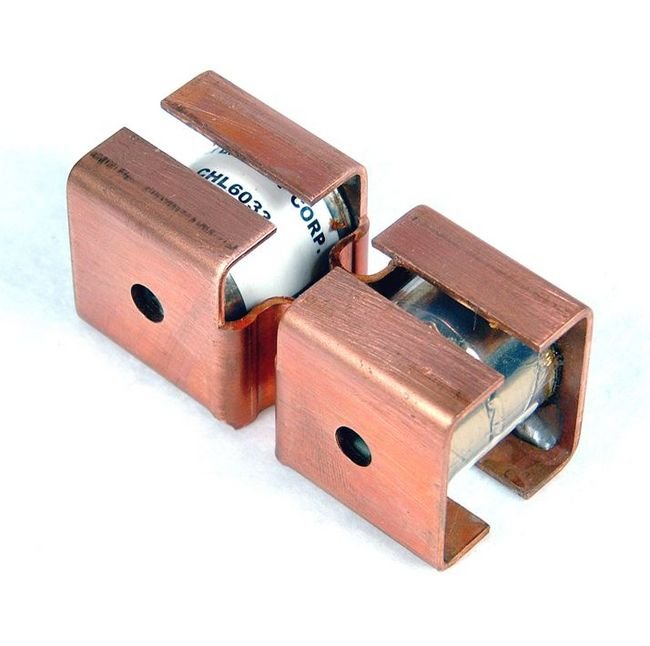

Enhance your electronic systems with the CHL Series Metallized Film Capacitors featuring a working voltage of up to 500 VRMS, maximum power capacity of 160 kVA, and conduction-cooled design for reliable performance. With a capacitance range of 0.1 to 2.5 µF and compact dimensions of 2 11/16 x 1 1/4 x 1 3/16 in, these capacitors offer precise operation within a broad frequency range up to 800 kHz. Ideal for industrial, commercial, and government applications requiring high performance and durability.
Product Specifications
Specifications Cap
1.2 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

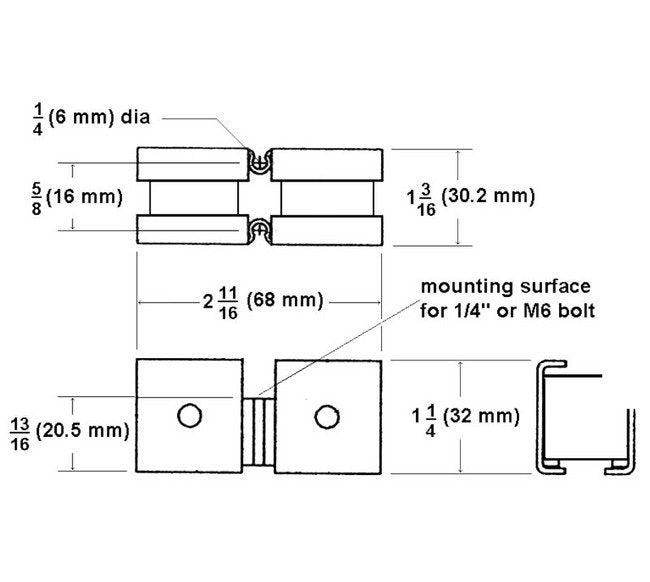

Specifications Dimensions
2 11/16 x 1 1/4 x 1 3/16 in | 68 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
87 kHz
Specifications Fl
85 kHz
Specifications Fmax
800 kHz
Specifications Imax Rms
325 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
500 V
Specifications Weight
0.5 kg | 1.1 lb
