5052 H34 Half Hard Aluminum Sheet, 0.0200" Thickness

Name: 5052 H34 Half Hard Aluminum Sheet, 0.0200" Thickness
Brand: Thin Metal Sales, Inc.
SKU: 505-310ce6
Price: 25.99 USD
Availability: OutOfStock

SKU:505-310ce6

5052 Alloy H34 Aluminum Sheet, 0.0200" Thickness, High Strength & Corrosion Resistance

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5052 Alloy H34 Half Hard Temper Aluminum Sheet offers exceptional strength and corrosion resistance. With a thickness of 0.0200 inches and meeting ASTM-B-209 standards, this sheet is perfect for various applications. It features a minimum tensile strength of 34,000 psi, ensuring durability and reliability. The composition includes maximum 2.80% magnesium and precise dimensional control.

Product Specifications

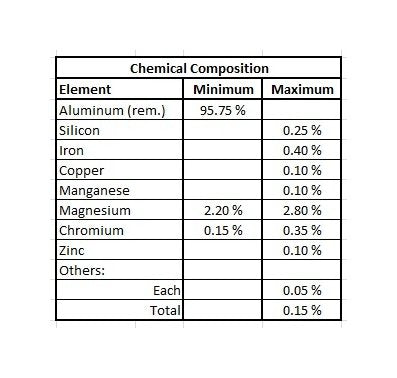

Composition Maximum Chromium Composition

0.35 %

Composition Maximum Copper Composition

0.10 %

Composition Maximum Iron Composition

0.40 %

Composition Maximum Magnesium Composition

2.80 %

Composition Maximum Manganese Composition

0.10 %

Composition Maximum Others Composition Each

0.05 %

Composition Maximum Others Composition Total

0.15 %

Composition Maximum Silicon Composition

0.25 %

Composition Maximum Zinc Composition

0.10 %

Physical Properties Maximum Tensile Strength

41,000 psi

Physical Properties Minimum Elongation 0009 To 0019 Inch In Thic

3 %

Physical Properties Minimum Elongation 0020 To 0050 Inch In Thic

4 %

Physical Properties Minimum Tensile Strength

34,000 psi

Physical Properties Minimum Yield Strength

26,000 psi

Specifications Alloy

5052 Aluminum Alloy

Specifications Astm Steel Standard

ASTM-B-209

Specifications Length

Custom

Specifications Temper

H34 Half Hard Temper

Specifications Thickness

0.0200 in

Specifications Thickness Tolerance

0.0008 in

Specifications Width

Custom

5052 H34 Half Hard Aluminum Sheet, 0.0200" Thickness
