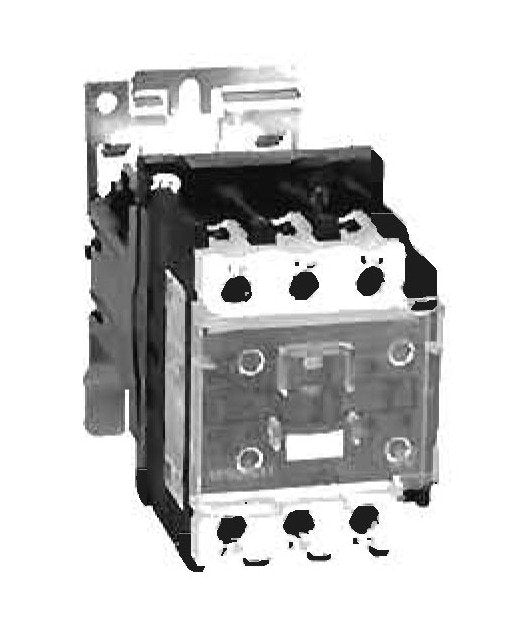

The 50 Ampere Inductive Alternating Current T-Range 3 Pole Contactor with Direct Current Operating Coil by Shamrock Controls is a high-performance DP Contactor designed for robust electrical applications. With maximum power ratings for various voltages, dual auxiliary contacts, and compliance with international standards including BSEN60947 and UL approvals, this contactor ensures reliable and safe operation in diverse environments.
Product Specifications
Accessories Accessories
Item #: TA9-D6569Item Name: Power Connectors Wire Sets for Reversing ContactorsItem #: LA9D50978Item Name: Mechanical Interlocks Horizontally MountedItem #: ELA9D80978Item Name: Electromechanical Interlocks Horizontally MountedItem #: TX4-D4D-XXSpare Coils Direct Current (DC)Item #: TA9AMOV880EItem Name: Coil SuppressorDescription: Variator (AC/DC) Clip-on mounting for 9-95A ContactorVoltage Ratings: 24-48 V AC/DCItem #: TA9AMOV98DUItem Name: Coil SuppressorDescription: Variator (AC/DC) Clip-on mounting for 9-95A ContactorVoltage Ratings: 110-240 V AC/DCItem #: TA9RC98DEItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 24-48 V ACItem #: TA9RC98DUItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 110-240 V ACItem #: TA9RC98DNItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 380-440 V AC
Control Circuit Characteristics Average Consumption At 20 Degree
22 V·A
Control Circuit Characteristics Average Operating Time At Rated
20 to 35 ms
Control Circuit Characteristics Dropout Temperature 0 55 Degree
0.1 to 0.3 Uc
Control Circuit Characteristics Maximum Operating Rate At Ambien
3600 cycles
Control Circuit Characteristics Mechanical Life Rated Control Ci
20 V
Control Circuit Characteristics Operational Control Voltage For
0.75 to 1.25 Uc
Control Circuit Characteristics Rated Control Circuit Voltage
12 to 660 V

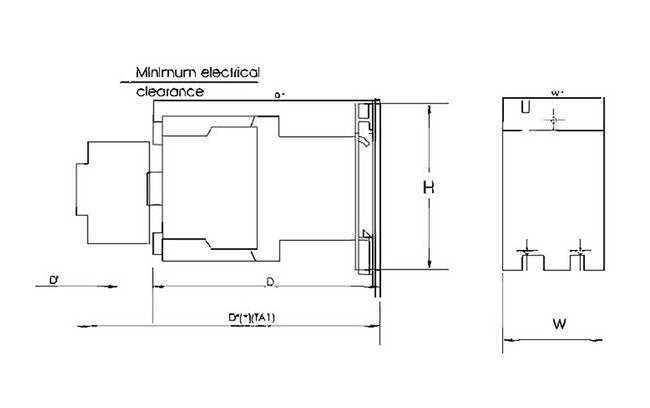

Dimensions Depth
171 mm
Dimensions Dimension C
171 mm
Dimensions Dimension D 008
181 mm
Dimensions Dimension D Ta1
202 mm
Dimensions Dimension G
40 mm
Dimensions Height
127 mm
Dimensions Minimum Electrical Clearance D
12 mm
Dimensions Width
75 mm
Integral Auxillary Contact Characteristics Rated Operational Vol
0 to 660 V
Integral Auxillary Contact Characteristics Rated Thermal Current
10 A
Pole Characteristics Ambient Air Storage Temperature
-60 to +80 ºC
Pole Characteristics Approvals
Canadian Standards Association (CSA) | Underwriters' Laboratories (UL)
Pole Characteristics Around The Device Operating Temperature
-5 to +55 ºC
Pole Characteristics Around The Device Permissible Temperature
-40 to +70 ºC
Pole Characteristics Auxiliary Contacts Normally Closed Nc
1
Pole Characteristics Maximum Power Rating At Single Phase 120 Vo
3 hp
Pole Characteristics Maximum Power Rating At Single Phase 230 Vo
7.5 hp
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
15 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
15 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
40 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
40 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
3.7 W
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
900 A
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
500 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
900 A
Pole Characteristics Rated Insulation Voltage
1000 V
Pole Characteristics Rated Making Capacity Conforming To Interna
900 A
