50E Series 4-Way Mounting Bases - 1 Inch
50E Series 4-Way Mounting Bases - 1 Inch
SKU:02C-5fb882
Secure cable tie installations with the durable 50E Series 4-Way Mounting Bases - 1 Inch. Adhesive-backed and screw mountable, ideal for diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
50E Series 4-Way Mounting Bases - 1 Inch
$29.99
Quantity: 1
Claim Your Seller Account
50E Series 4-Way Mounting Bases - 1 Inch
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

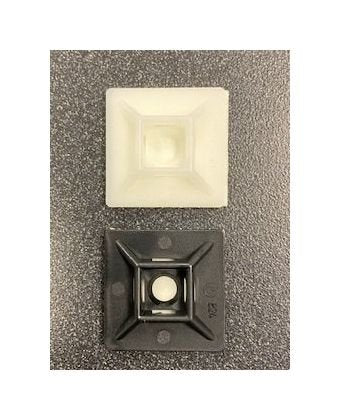

The 50E Series 4-Way Mounting Bases are engineered for secure cable tie installations in demanding environments. These bases feature a 1"x 1" square design with adhesive backing and a #10 flat head screw mount. Constructed from Nylon 66 UL94V-2 material, they offer reliability and durability. With a temperature range of -40 to 185F (-40 to 85C), these mounting bases ensure optimal performance in varied conditions. Available in Natural or UV Black, these bases are RoHS compliant and meet stringent industry standards.
Product Specifications
Specifications Color
Black

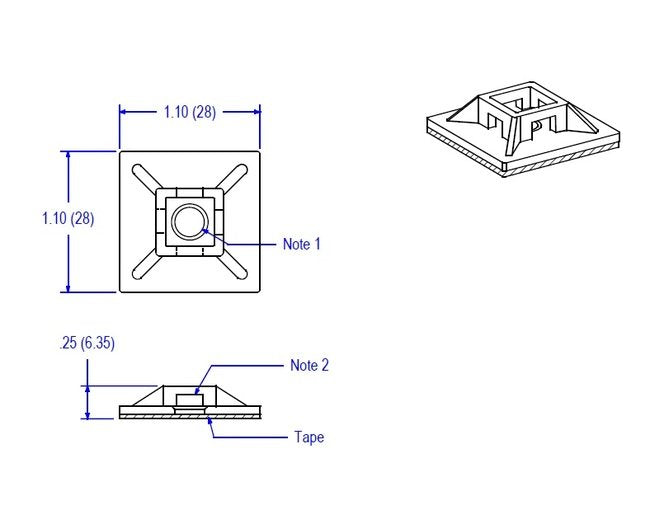

Specifications Note 1
.23 (5.8) Screw Hole for #10; Flat Head Screw inches (mm)
Specifications Note 2
.20(5.1) Ht x .09(2.3) Wide Slot Accomodates 18-60 (8.2-27.2) Cable Ties lbs (Kg)
