51 Series Dual Locking Board Support

Name: 51 Series Dual Locking Board Support
Brand: All Electronics Hardware
SKU: 01C-35cd24
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-35cd24

Securely mount circuit boards with the 51 Series Dual Locking Board Support. Made from Nylon 66 material, UL listed, and RoHS compliant. Upgrade to V-0 compliance for added safety.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

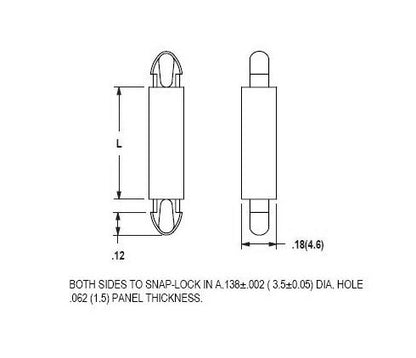

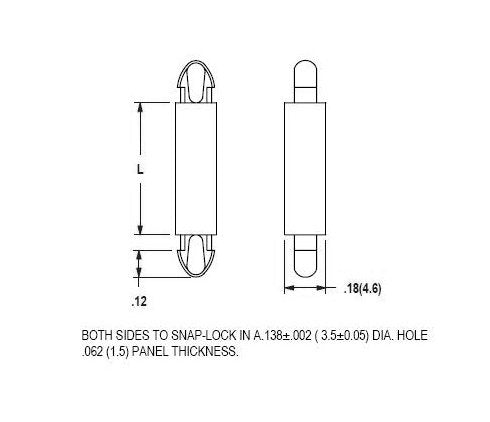

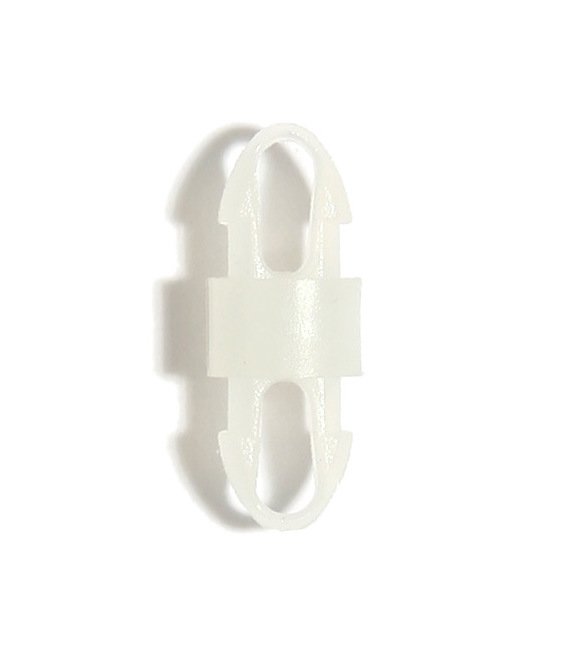

The 51 Series Dual Locking Board Support features a teardrop head design with a .138 diameter hole at both ends, providing secure mounting for circuit boards. Made from Nylon 66 UL94V-2 material (V-0 available), this support is UL listed (File# E41938) and RoHS compliant. With a temperature range of -40 to 185 F (-40 to 85 C), it ensures reliable performance in diverse environments. The panel thickness of .062 inches and precise craftsmanship make it ideal for stabilizing circuit boards with a panel thickness of up to 1.5mm. Upgrade to V-0 compliance by adding an “X” to the end of the part number for enhanced safety.

Product Specifications

Specifications Dim L

.787 (20) inches (mm)

Specifications Hole Diameter

.138 (2.5) inches (mm)

Specifications Panel Thickness

.062 (1.5) inches (mm)

Specifications Remarks Hole Diameter

+/-.002

51 Series Dual Locking Board Support
