52" Grade 3 HF Series Oil Removal Air Filter
52" Grade 3 HF Series Oil Removal Air Filter
SKU:NEW-92e321
Engineered for maximum efficiency, the 52" Grade 3 HF Series Oil Removal Air Filter ensures oil-free, high-quality compressed air for critical applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
52" Grade 3 HF Series Oil Removal Air Filter
$2,999.99
Quantity: 1
Claim Your Seller Account
52" Grade 3 HF Series Oil Removal Air Filter
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure oil-free air for critical applications with the 52-inch ASME Pressure Vessel Grade 3 HF Series Oil Removal Air Filter. Engineered for maximum efficiency, this filter provides high-quality compressed air, meeting stringent industry standards. Features include an ultra-fine coalescer, easy maintenance, and versatile installation options. Ideal for electronics manufacturing, conveying systems, and nitrogen replacement, this filter guarantees top-notch air quality and performance.
Product Specifications
Accessories And Options
The HF Series is supported by a complete line of accessories and options making filter installation and differential pressure monitoring easy.
Additional Information
Hankison® filters remove more contaminants with less pressure drop through housings that have large flow areas. Compare the operating pressure drop of competitive brands and remember that for every extra 2 psi of pressure drop, power input needs to be increased by 1%. A systems approach has been used to allow for convenient matching of filter types to achieve the air quality you desire, while comprehensive third party testing guarantees performance to CAGI (Compressed Air And Gas Institute), ISO (International Standards Organization) and PNEUROP (European Committee of Manufacturers of Compressors, Vacuum Pumps and Pneumatic Tools) standards.With a greater selection of filter grades, more models to choose from and worldwide technical and service support, Hankison® offers a systemized solution for your compressed air quality needs.
Air Qualitypressure Drop Dry Pressure Drop
2 psid | 0.07 bar
Air Qualitypressure Drop Remaining Oil
0.0008 ppm
Air Qualitypressure Drop Solid Particulate
0.01 µ
Air Qualitypressure Drop Wet Pressure Drop
6 psid | 0.42 bar
Condensate Management Manual Drain
Condensate may be drained manually through clockwise adjustment.
Condensate Management No Air Loss Mechanical Drain
Reliably removes condensate without need for electricity.
Element Grades For Enhanced Performance
Grade 3 Maximum Efficiency Oil Removal FilterDesigned for coalescing ultra-fine oil aerosolsRemoves solid particulate to 0.01 micronMaximum remaining oil content (Filter efficiency has been established in accordance with CAGI standard ADF400 and is based on 100 ºF (38 ºC) inlet temperature.): 0.0008 ppm w/wOperationFirst Stage - Coated, closed cell foam sleeve acts as prefilter and flow disperserSecond Stage - Multiple layers of matrix blended fiber media for ultra-fine coalescence
Engineered For Efficiency Easy To Install
Modular connections allow housings to be connected in series easily, while saving spaceWall mounting bracket optionalCan be mounted for left or right entryNew space saving design reduces service clearances
Engineered For Efficiency Easy To Maintain
1/8 turn, self-locking bayonet head to bowl connections (through 1 in.)Push on elements make element replacement quick and easyIf housing is not depressurized before disassembly, escaping air gives audible warningCaptive O-ringRibbed bowls allow use of C spannerColor coded elements for easy identification
Engineered For Efficiency Easy To Operate

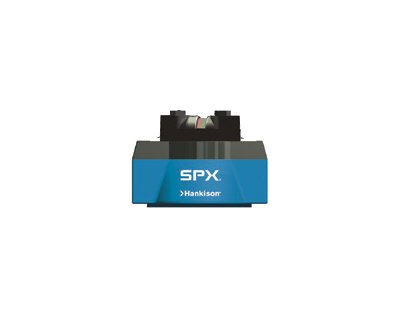

Differential Pressure GaugeDifferential pressure indicatorsIndicates optimum time for element change - maximizing your element investment while minimizing pressure dropLarge, easy to read gauge faceDual faces allow housings to be mounted in any flow directionCan be mounted remotelySwitch for remote indication availableSlide indicatorChanges color when filter element requires replacementLiquid Level IndicatorAllows visual monitoring of liquid level and signals the need for preventative maintenance to avoid downstream contaminationManufactured from thermoset polyurethane, compatible with synthetic lubricantsInternal Automatic DrainsPilot operated, pneumatically actuated to reliably discharge collected liquidViton seals - compatible with synthetic lubricantsInlet screen for additional protectionDischarge fitting threaded to facilitate drain line connection
Features
Withstands temperatures to 150 ºF (66 ºC)Push-on elements provide simple replacementPiston type seal keeps unfiltered air from by-passing elementStainless steel, corrosion resistant inner and outer coresLow resistance to flowSeam welded durabilityMatrix blended fiber mediaLarge, effective surface area ensures high efficiencies and minimizes pressure dropCoated, closed cell foam sleeveResists chemical attack from oils and acidsEnsures high efficiencies by preventing re-entrainment of coalesced liquidsChemically resistant end capsSilicone free

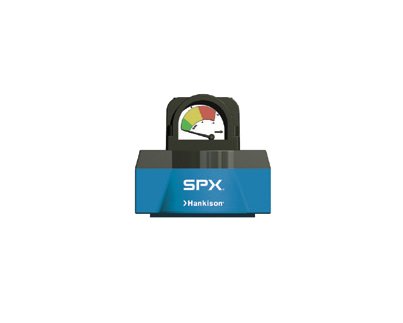

Pressure Monitoring Differential Pressure Gauge
Two color gauge face indicates element change-out based on differential pressure.

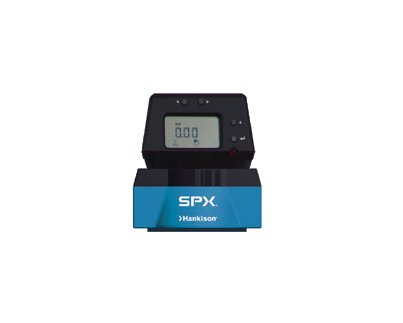

Pressure Monitoring Electronic Filter Monitor
Predicts the optimal time to change the element.
Quality Compressed Air
A typical compressed air system is contaminated with abrasive solid particles such as dust, dirt, rust and scale, compressor lubricants (mineral or synthetic), condensed water droplets and acidic condensates and oil and hydrocarbon vapors.If not removed, these contaminants increase pneumatic equipment maintenance costs, lead to instrument and control failure, contribute to poor product fit and finish, and contaminate processes.The right Hankison® filter or filter system will remove these contaminants allowing your compressed air system to deliver the quality of air required by your application - whether it's plant air, instrument air, medical air or helping to ensure consistent output quality while minimizing operating costs.
Specifications Connection Size
4 in
Specifications Connection Type
Flanged
Specifications Flow Capacity At 100 Psig 67 Bar Pressure
2500 scfm | 4248 nm³/h
Specifications Height
52 in
Specifications Model
ASME Pressure Vessels
Specifications Options
D (Internal Automatic Drain) | G (Differential Pressure Gauge) | M (Electronic Filter Monitor) | T (Drain Plug) | X (External Drain Adapter)
Specifications Quantity
4

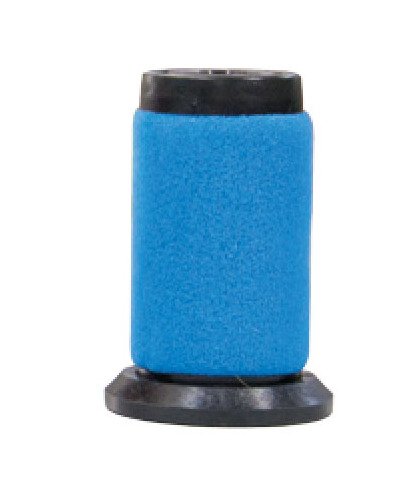

Specifications Replacement Element Model
E 3-PV
Specifications Series
HF
Specifications Weight
185 lb
Specifications Width
20 in
Technical Specifications Maximum Operating Pressure Drain Plug
225 psig | 15.5 bar
Technical Specifications Maximum Operating Pressure Internal Aut
225 psig | 15.5 bar
Technical Specifications Maximum Operating Temperature Drain Plu
150 ºF | 66 ºC
Technical Specifications Maximum Operating Temperature Internal
150 ºF | 66 ºC
Technical Specifications Minimum Operating Temperature Drain Plu
35 ºF | 2 ºC
Technical Specifications Minimum Operating Temperature Internal
35 ºF | 2 ºC
Total System Protection Element Grade
Grade 3
Total System Protection Iso Performance Data
Removes 99.9999+% of solids 0.01 micron and larger.Remaining oil content < 0.0008 ppm/w.ISO 8573.1: 2010 Air Quality Class:Solid Particles - Class 1.Remaining Oil Content - Class 1.
Total System Protection Where Applied
Upstream of desiccant or membrane dryers; use a Grade 7 as a prefilter if heavy liquid loads are present.Downstream of refrigerated dryers.
Versatile Installation Filter Connectors
Easily connects filters in series.
Versatile Installation Wall Mount Bracket
Provides installation flexibility.
