52-inch Eight Door Amber Acrylic Desiccator
52-inch Eight Door Amber Acrylic Desiccator
SKU:EIG-a37d84
Organize and store parts in low-humidity environment with precision in this spacious 52-inch Eight Door Amber Acrylic Desiccator.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
52-inch Eight Door Amber Acrylic Desiccator
$1,499.99
Quantity: 1
Claim Your Seller Account
52-inch Eight Door Amber Acrylic Desiccator
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

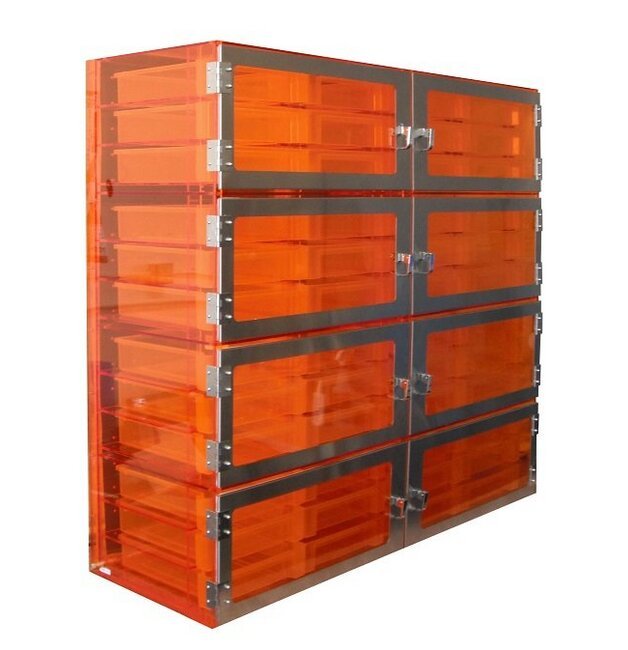

The 52-inch Eight Door Amber Acrylic Desiccator is designed for precise storage in low humidity environments. With 8 chambers and 48 polypropylene drawers, it ensures organized storage of parts. The amber acrylic material, stainless steel components, and Santoprene seal guarantee durability and protection for sensitive components. Optional add-ons like Gas-in Port & Pressure Relief Valve enhance functionality for extended shelf life.
Product Specifications
Additional Information Additional Information
1/4" Thick UV Amber Acrylic.Acrylic can be damaged by alcohol and some cleaning agents.Stainless steel door frame and door hinge.Metal lift-and-turn compression latch.Single-piece Santoprene seal.Removable plenum chamber.
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to levelling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.The back plenum can be removed for applications that require isolated chambers.
Specifications Access Door
One Side
Specifications Door Opening Height
103125 in
Specifications Door Opening Width
24.5 in
Specifications Drawer Depth
13.25 in
Specifications Drawer Height
3 in
Specifications Drawer Width
10.25 in
Specifications Material
Amber Acrylic
Specifications Number Of Chambers
8
Specifications Number Of Polypropylene Drawers
48
Specifications Overall Depth
18 in
Specifications Overall Height
50 in
Specifications Overall Width
52 in
