52 Inch Eight Door Sliding Tray Clear Acrylic Desiccator
52 Inch Eight Door Sliding Tray Clear Acrylic Desiccator
SKU:EIG-40eb93
Organize and protect parts in a controlled environment with our 52-inch Eight Door Clear Acrylic Desiccator.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
52 Inch Eight Door Sliding Tray Clear Acrylic Desiccator
$2,699.99
Quantity: 1
Claim Your Seller Account
52 Inch Eight Door Sliding Tray Clear Acrylic Desiccator
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

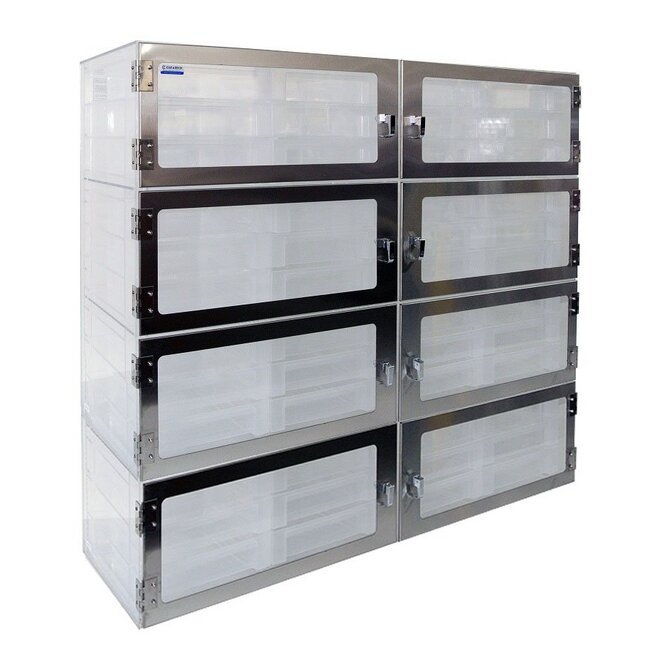

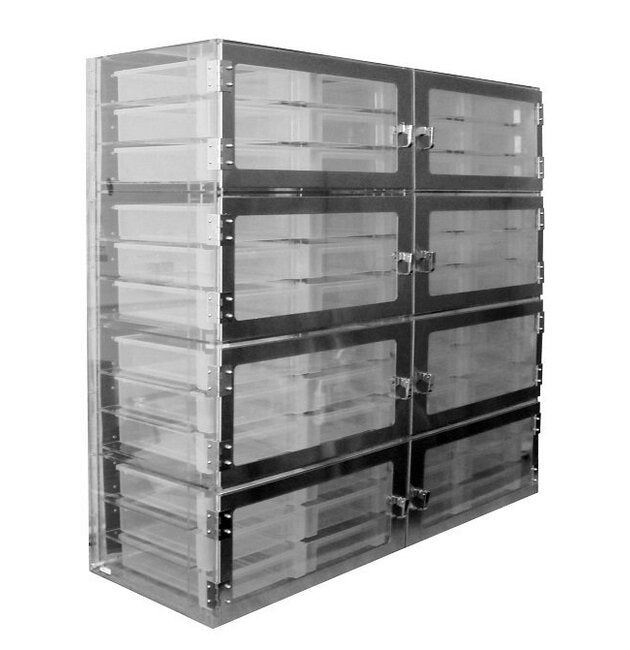

The 52-inch width, 18-inch depth, and 50-inch height Eight Door Sliding Tray Clear Acrylic Desiccator with 48 polypropylene drawers provides a controlled, low-humidity environment for organized part storage. This desiccator, crafted from 1/4" thick clear acrylic with stainless steel components, ensures long shelf life for stored parts. It features sliding drawers, a lift-and-turn compression latch, and a one-channel automatic purge control unit with multiple optional accessories for enhanced functionality and durability. Ideal for maintaining part integrity in sensitive environments.
Product Specifications
Additional Information Additional Information
1/4" Thick Clear Acrylic.Acrylic can be damaged by alcohol and some cleaning agents.Stainless steel door frame and door hinge.Metal lift-and-turn compression latch.Single-piece Santoprene seal.Removable plenum chamber.
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to levelling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.The back plenum can be removed for applications that require isolated chambers.
Specifications Access Door
One Side
Specifications Door Opening Height
103125 in
Specifications Door Opening Width
24.5 in
Specifications Drawer Depth
13.25 in
Specifications Drawer Height
3 in
Specifications Drawer Width
10.25 in
Specifications Material
Clear Acrylic
Specifications Number Of Chambers
8
Specifications Number Of Polypropylene Drawers
48
Specifications Overall Depth
18 in
Specifications Overall Height
50 in
Specifications Overall Width
52 in
