52 Series Dual Locking Board Support

Name: 52 Series Dual Locking Board Support
Brand: All Electronics Hardware
SKU: 01C-624da1
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-624da1

Secure circuit boards effortlessly with the 52 Series Dual Locking Board Support. Easy to install and release, durable Nylon 66 material with UL94V-2 compliance. Temperature-resistant from -40 to 185F. Pack of 1000.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

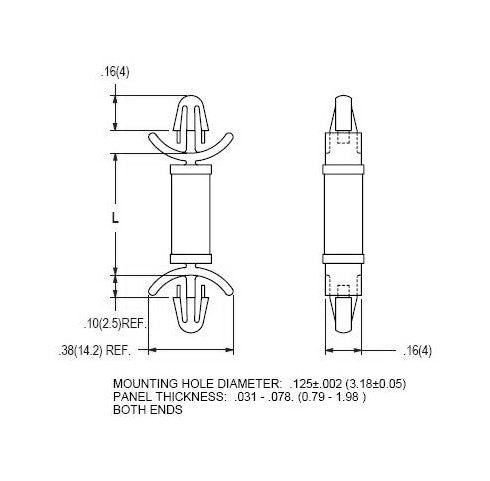

The 52 Series Dual Locking Board Support is a reliable solution for securing circuit boards with ease. Featuring a mounting hole diameter of .125 inches (3.18mm) on both ends, this support is designed for quick installation by hand and easy release for repairs. Made from Nylon 66 UL94V-2 material, with an option for UL94V-0, it offers durability and compliance. With a temperature range of -40 to 185F (-40 to 85C), this support ensures stability in various environments. Each pack contains 1000 units, making it ideal for bulk applications.

Product Specifications

Specifications Board Hole Diameter

.125 (3.18) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.18) inches (mm)

Specifications Dim L

.375 (9.6) inches (mm)

Specifications Panel Thickness

.031-.078 (.8-.1.98) Both Ends inches (mm)

52 Series Dual Locking Board Support
