52 Series Dual Locking Circuit Board Support
52 Series Dual Locking Circuit Board Support
SKU:01C-cfef89
Dual locking circuit board supports with .125-inch mounting hole diameter, Nylon 66 UL94V-2 material, and easy releasability for repairs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
52 Series Dual Locking Circuit Board Support
$49.99
Quantity: 1
Claim Your Seller Account
52 Series Dual Locking Circuit Board Support
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

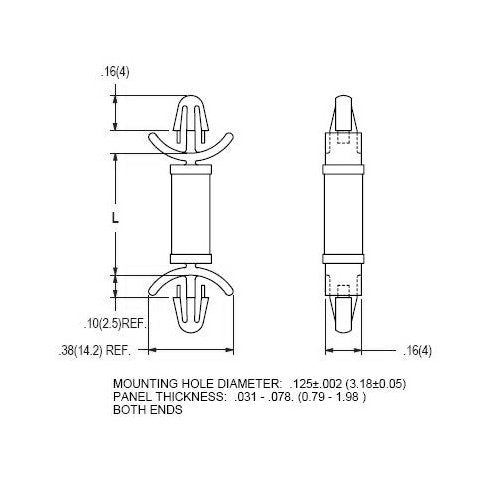

The 52 Series Dual Locking Circuit Board Supports are designed for easy manual installation, featuring a mounting hole diameter of .125 inches (3.18mm) on both ends. Made of Nylon 66 UL94V-2 material, these supports are releasable for quick repairs, with a temperature range of -40 to 185F (-40 to 85C). Each pack contains 1000 supports, meeting ASTM D 4066 and PA0113 standards, ensuring reliability and durability for your circuit board installations.
Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.18) inches (mm)
Specifications Dim L
.625 (15.9) inches (mm)
Specifications Panel Thickness
.031-.078 (.8-.1.98) Both Ends inches (mm)
