52 Series Nylon Board Support .125 Board Hole x .125 Chassis Hole
52 Series Nylon Board Support .125 Board Hole x .125 Chassis Hole
SKU:01C-137cd4
Secure and versatile Nylon Board Support with dual locking mechanism and .125-inch hole sizes for reliable circuit board installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
52 Series Nylon Board Support .125 Board Hole x .125 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
52 Series Nylon Board Support .125 Board Hole x .125 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 52 Series Nylon Board Support offers dual locking functionality for secure circuit board installations. Featuring a .125-inch (3.18mm) board hole and chassis hole, this support is easy to install by hand and can be released for repairs. Made of Nylon 66 UL94V-2 material, with UL File No. E41938ASTM: D4066, PA0113 and RoHS compliance, it ensures reliability and durability. With a temperature range of -40 to 185F (-40 to 85C), this support is ideal for various applications requiring precise and resilient board support solutions.

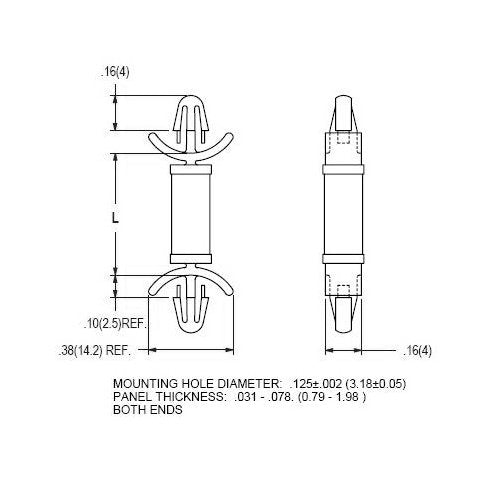

Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.18) inches (mm)
Specifications Dim L
.250 (6.4) inches (mm)
Specifications Panel Thickness
.031-.078 (.8-.1.98) Both Ends inches (mm)
