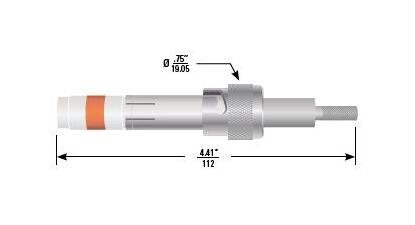

521 Series High Voltage Plug Kit - 25kVDC
521 Series High Voltage Plug Kit - 25kVDC
SKU:HIG-f913b5
Enhanced safety with recessed contacts, 25kVDC ratings, and reliable bayonet coupling, suitable for high voltage applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
521 Series High Voltage Plug Kit - 25kVDC
$89.99
Quantity: 1
Claim Your Seller Account
521 Series High Voltage Plug Kit - 25kVDC
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 521 Series High Voltage Plug Kit is designed for maximum safety, featuring recessed contacts that mitigate electrical shock risks. With a voltage rating of 25kVDC and a test voltage of 41kVDC at 70,000 ft., these connectors ensure secure connections. The bayonet coupling style, brass nut finish, and BeCu/Au plug contact material guarantee durability and reliability. Operating Temperature Range of -40 to 85°C makes it suitable for various environments.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
