521 Series Plug Kit - 25 kVDC High Voltage Connector
521 Series Plug Kit - 25 kVDC High Voltage Connector
SKU:HIG-8b0d9e
Enhance safety & reliability with the 521 Series Plug Kit - 25 kVDC voltage rating, bayonet coupling, & recessed contacts for reduced electrical shock risk.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
521 Series Plug Kit - 25 kVDC High Voltage Connector
$59.99
Quantity: 1
Claim Your Seller Account
521 Series Plug Kit - 25 kVDC High Voltage Connector
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 521 Series Plug Kit offers unparalleled safety with recessed contacts to reduce the risk of electrical shock. Designed for high voltage applications, these connectors feature a spring finger body contact for reliable grounding. With a voltage rating of 25 kVDC and Test Voltage @ 70000 ft. of 41 kVDC, they ensure secure connections at elevated altitudes. The bayonet coupling nut made of brass with nickel finish enhances durability. Operating in a wide temperature range of -40 to 85 °C, these connectors meet stringent industry standards for maximum user safety and reliability.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass

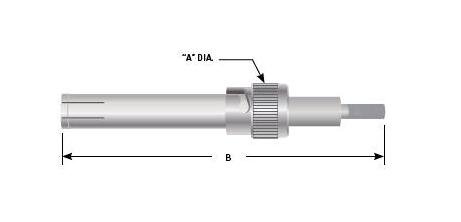

Dimensions A Diameter
0.75 in | 19.05 mm
Dimensions B
4.41 in | 112 mm
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Plug Bag Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521 SL
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
