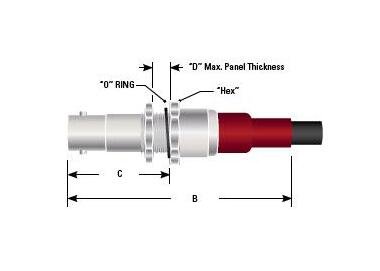

521 Series Sealed Rear Mount Receptacle Connector
521 Series Sealed Rear Mount Receptacle Connector
SKU:HIG-178309
Enhanced safety 521 Series Receptacle Connector for high voltage applications with recessed contacts and reliable ground circuit, ideal for critical environments.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
521 Series Sealed Rear Mount Receptacle Connector
$129.99
Quantity: 1
Claim Your Seller Account
521 Series Sealed Rear Mount Receptacle Connector
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 521 Series Receptacle Connector is designed for high voltage applications, featuring recessed contacts for enhanced user safety. With a voltage rating of 25 kVDC at elevated altitudes, this connector minimizes the risk of electrical shock. Its spring finger body contact ensures a reliable ground circuit before engaging the center contact. Operating in a wide temperature range from -40 to 85°C, the Series 521 connector offers a secure and efficient connection solution for critical environments.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Receptacle Contact Materialfinish
Brass/Au
Specifications Receptacle Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Series
521
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
