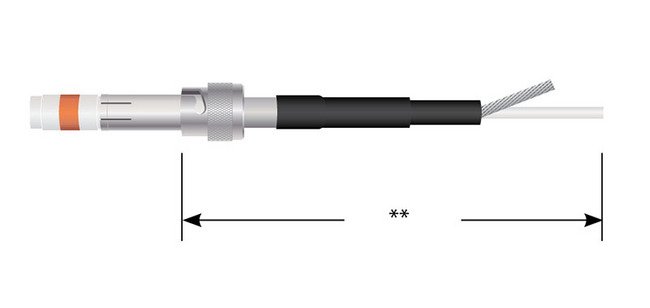

521 Series Single-Ended High Voltage Cable Assembly
521 Series Single-Ended High Voltage Cable Assembly
SKU:HIG-461bb7
Enhance safety with the 521 Series Single-Ended High Voltage Cable Assembly, ideal for high voltage applications, offering user security and reliability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
521 Series Single-Ended High Voltage Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
521 Series Single-Ended High Voltage Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 521 Series Single-Ended High Voltage Cable Assembly is engineered for enhanced user safety in high voltage environments, featuring recessed contacts that minimize electrical shock risks. With a voltage rating of 25 kVDC and a test voltage of 41 kVDC @ 70,000 ft., this assembly ensures secure connections under demanding conditions. The bayonet coupling style, brass coupling nut, and shielded wire type further contribute to reliable performance and safety measures. Operating within a temperature range of -40 to 85°C, this assembly is designed to meet stringent institutional procurement standards.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
