521 SL Series Double-Ended Cable Assembly

Name: 521 SL Series Double-Ended Cable Assembly
Brand: Teledyne Reynolds
SKU: HIG-c89816
Price: 299.99 USD
Availability: OutOfStock

SKU:HIG-c89816

Enhanced user safety with recessed contacts, reliable ground circuit, and superior performance. Voltage rating of 25 kVDC at high altitudes and 20 kVDC at sea level.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

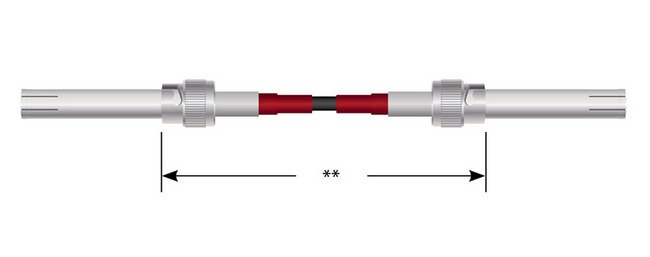

The 521 SL Series Double-Ended Cable Assembly is a high voltage connector designed with user safety as a top priority. Featuring recessed contacts that mitigate the risk of electrical shock, this assembly is ideal for applications requiring reliable ground circuits and safe engagement. With a voltage rating of 25 kVDC at high altitudes and 20 kVDC at sea level, along with a superior bayonet coupling style and brass nickel-plated coupling nut, this cable assembly ensures both performance and safety in challenging environments. Operating temperature range of -40 to 85°C guarantees versatility in various conditions.

Product Specifications

Coupling Nut Properties Bayonet Coupling Nut Finish

Nickel

Coupling Nut Properties Bayonet Coupling Nut Material

Brass

Specifications Altitudereduced Pressure Rating

Sea Level

Specifications Assembly Type

Double-Ended Plug Cable Assembly

Specifications Braid Termination

Crimp

Specifications Coupling Style

Bayonet

Specifications Current Rating

20 A

Specifications Export Classification

TBD

Specifications Operating Temperature

-40 to 85 ÂºC

Specifications Plug Contact Materialfinish

BeCu/Au

Specifications Plug Insulator Material

Plastic

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

N/A

Specifications Series

521 SL

Specifications Test Voltage 70000 Ft

Specifications Test Voltage At Sea Level

28 kVDC

Specifications Voltage Rating

20 kVDC

Specifications Wire Insulation

Specifications Wire Type

Shielded

521 SL Series Double-Ended Cable Assembly
