53 Series: Flat Board Side x .125 Chassis Hole Circuit Board Support
53 Series: Flat Board Side x .125 Chassis Hole Circuit Board Support
SKU:01C-af5f4a
Easy-to-install 53 Series Circuit Board Support for secure PCB mounting on chassis. RoHS compliant and durable Nylon 66 material.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
53 Series: Flat Board Side x .125 Chassis Hole Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
53 Series: Flat Board Side x .125 Chassis Hole Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 53 Series Flat Board Circuit Board Support is designed for easy installation onto chassis without the need for tools or screws, supporting loaded PC boards securely. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this product meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this support ensures reliable performance in various environments.
Product Specifications

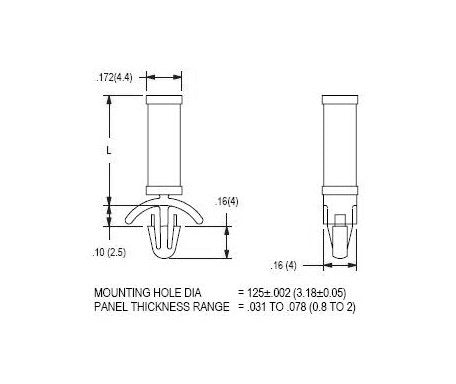

Specifications Dim L
.563 (14.3) inches (mm)
