531 Series Double-Ended Cable Assembly
531 Series Double-Ended Cable Assembly
SKU:HIG-115015
High voltage cable assembly with recessed contacts for enhanced safety and reliability. Suitable for extreme temperatures and high voltage applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
531 Series Double-Ended Cable Assembly
$79.99
Quantity: 1
Claim Your Seller Account
531 Series Double-Ended Cable Assembly
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 531 Series Double-Ended Cable Assembly is a high voltage connector designed for safety and reliability. With recessed contacts that minimize the risk of electrical shock, this assembly features a spring finger body contact for a secure ground circuit. Operating in extreme temperatures from -40 to 85°C and with a voltage rating of 15 kVDC, it meets the demanding needs of both consumer and institutional environments. The bayonet coupling style and brass nut finish ensure durability and ease of use, making it ideal for high voltage applications.
Product Specifications
Contact Properties Contact Type
Female
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Ordering Information 0

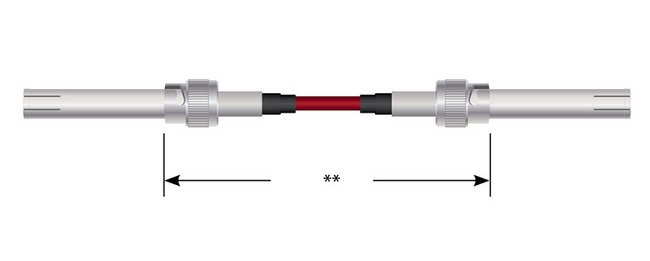

Cable Assembly Ordering Information Length Tolerance Chart Example : 167-4237-10F-8N Length Tolerance Cable Assembly Type 7 1/2' or less ±1/4" 10 feet 8 inches 7 1/2' to 12 1/2' ±1" Example : 167-4237-18N 12 1/2' to 22 1/2' ±1 1/2" Cable Assembly Type 22 1/2' to 35' ±2" 18 inches 35' to 50' ±3" 50' to 70' ±4" 70' to 100' ±5"
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications End 1
1674535
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
