531 Series Double-Ended Cable Assembly
531 Series Double-Ended Cable Assembly
SKU:HIG-9c31a4
High-voltage double-ended cable assembly with recessed contacts for maximum safety and reliability. Ideal for critical applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
531 Series Double-Ended Cable Assembly
$149.99
Quantity: 1
Claim Your Seller Account
531 Series Double-Ended Cable Assembly
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 531 Series Double-Ended Cable Assembly is a high-voltage solution ideal for applications requiring safety and reliability. With recessed contacts for user safety and a spring finger body contact for grounding assurance, this assembly minimizes the risk of electrical shock. Operating in a wide temperature range and boasting specific characteristics like a 15 kVDC voltage rating and bayonet coupling style, this assembly ensures secure connections and robust performance.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Ordering Information 0

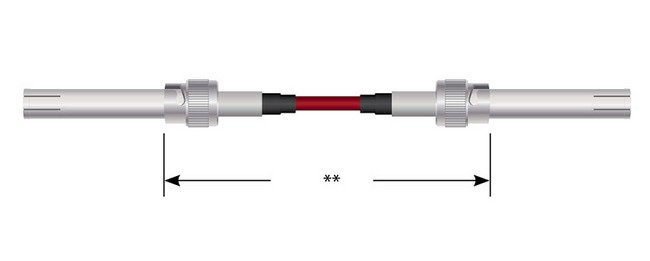

Cable Assembly Ordering Information Length Tolerance Chart Example : 167-4237-10F-8N Length Tolerance Cable Assembly Type 7 1/2' or less ±1/4" 10 feet 8 inches 7 1/2' to 12 1/2' ±1" Example : 167-4237-18N 12 1/2' to 22 1/2' ±1 1/2" Cable Assembly Type 22 1/2' to 35' ±2" 18 inches 35' to 50' ±3" 50' to 70' ±4" 70' to 100' ±5"
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications End 1
167-3554
Specifications End 2
167-3554
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates with all 531 series receptacles
Specifications Max Allowable Leakage
10 µA
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
