531 Series High Voltage Cable Assembly
531 Series High Voltage Cable Assembly
SKU:HIG-b6a63e
Enhanced safety and reliability with the 531 Series High Voltage Cable Assembly. Voltage rating: 15 kVDC. Operating temp: -40 to 85°C. Bayonet coupling for secure connections.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
531 Series High Voltage Cable Assembly
$79.99
Quantity: 1
Claim Your Seller Account
531 Series High Voltage Cable Assembly
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

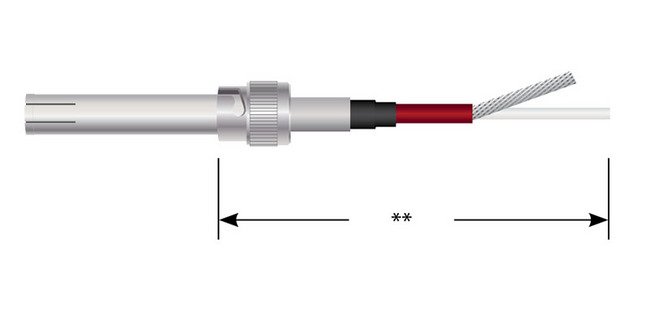

The 531 Series Cable Assembly, Single-Ended, Pigtail is specifically engineered for high voltage applications, featuring recessed contacts for enhanced user safety. With a voltage rating of 15 kVDC at 70,000 ft, this assembly ensures secure connections while reducing the risk of electrical shock. The bayonet coupling style, brass bayonet coupling nut, and female contact type further contribute to its reliability and durability. Operating in a wide temperature range from -40 to 85°C, this cable assembly is designed to meet stringent industry standards for high voltage connectors and cable assemblies.
Product Specifications
Contact Properties Contact Type
Female
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications End 1
1674535
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Receptacle Contact Materialfinish
Brass/Au
Specifications Receptacle Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
