531 Series High Voltage Cable Assembly
531 Series High Voltage Cable Assembly
SKU:HIG-56a38f
Enhance safety with the 531 Series High Voltage Cable Assembly featuring a 15 kVDC voltage rating, recessed contacts, and reliable ground circuit. Ideal for high-voltage applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
531 Series High Voltage Cable Assembly
$79.99
Quantity: 1
Claim Your Seller Account
531 Series High Voltage Cable Assembly
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

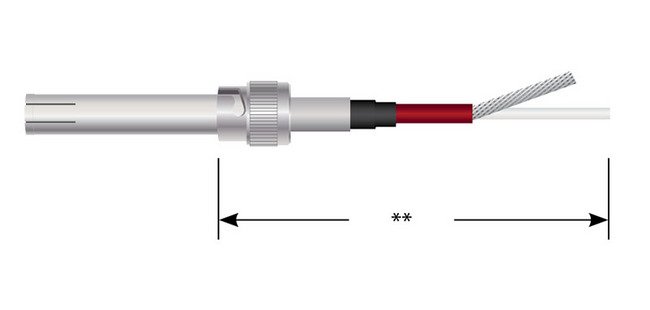

The 531 Series High Voltage Cable Assembly is a reliable solution for both commercial and institutional applications, featuring recessed contacts for enhanced user safety. With a voltage rating of 15 kVDC and a test voltage of 31 kVDC at 70,000 ft., this single-ended plug cable assembly ensures secure connections and minimizes the risk of electrical shock. Operating within a wide temperature range of -40 to 85°C, it provides a safe and stable electrical solution for high-voltage environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Ordering Information 0
Cable Assembly Ordering Information Length Tolerance Chart Example : 167-4237-10F-8N Length Tolerance Cable Assembly Type 7 1/2' or less ±1/4" 10 feet 8 inches 7 1/2' to 12 1/2' ±1" Example : 167-4237-18N 12 1/2' to 22 1/2' ±1 1/2" Cable Assembly Type 22 1/2' to 35' ±2" 18 inches 35' to 50' ±3" 50' to 70' ±4" 70' to 100' ±5"
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates series 531 panel connector P/N 167-3555.
Specifications Max Allowable Leakage
10 µA
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
