531 Series Plug Kit - 15 kVDC Coaxial Connector

531 Series Plug Kit - 15 kVDC Coaxial Connector

SKU:HIG-139f25

Enhance safety in high-voltage applications with the 531 Series Plug Kit - 15 kVDC Coaxial Connector. Reliable, tested, and user-friendly.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

531 Series Plug Kit - 15 kVDC Coaxial Connector

531 Series Plug Kit - 15 kVDC Coaxial Connector

$59.99

Quantity: 1

Claim Your Seller Account

531 Series Plug Kit - 15 kVDC Coaxial Connector

531 Series Plug Kit - 15 kVDC Coaxial Connector

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 531 Series Plug Kit features high voltage connectors with recessed contacts for enhanced user safety. With a voltage rating of 15 kVDC, it minimizes the risk of electrical shock through its innovative design. The kit includes assembly type plug bag assembly, nickel plated finish, beryllium copper contacts, and accommodates Type 'C' cable. Tested at 15KVDC for 10 sec, this kit ensures reliability and safety in high voltage applications. Operating temperature range from -40 to 85°C makes it a versatile choice for various environments.

Product Specifications

Body Properties Coupling Nut Material
Brass
Cable Preparation Insulation Resistance
106 MΩ
Contact Properties Contact Type
Female
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass

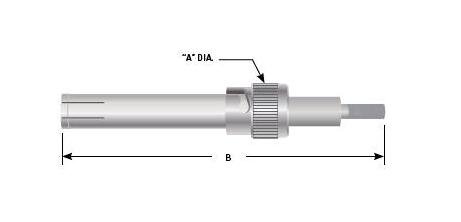

Dimensions A Diameter
0.625 in | 15.9 mm
Dimensions B
2.72 in | 69 mm
Specifications Accomodates
Type 'C' Cable (P/N 167-2669)
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Braid Termination
Crimp
Specifications Contact
Beryllium Copper
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Finish
Nickel Plate
Specifications Mating Compatibility
Reynolds receptacle #167;-3555
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Production Test
100% tested at 15KVDC for 10 sec.
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
