531 Series Sealed Front Mount Panel Connector
531 Series Sealed Front Mount Panel Connector
SKU:HIG-3f4cc0
Enhance safety in high voltage applications with the 531 Series Sealed Front Mount Panel Connector, designed for reliability and user protection.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
531 Series Sealed Front Mount Panel Connector
$59.99
Quantity: 1
Claim Your Seller Account
531 Series Sealed Front Mount Panel Connector
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 531 Series Sealed Front Mount Panel Connector is a high voltage connector with recessed contacts designed to enhance user safety by minimizing the risk of electrical shock. Featuring a spring finger body contact for reliable ground circuit connection and a voltage rating of 15 kVDC, this connector ensures secure electrical connections in demanding environments. With compliance to strict industry standards, including operating at temperatures from -40 to 85 ºC and with a test voltage of 31 kVDC at 70,000 ft, this connector is reliable and safe for both consumer and institutional applications.
Product Specifications
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Type
Male
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass

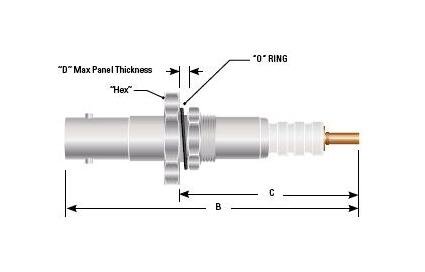

Dimensions B
2.70 in | 68.58 mm
Dimensions C
1.62 in | 41.15 mm
Dimensions D
0.312 in | 7.92 mm
Dimensions Hex
0.75 in | 19.05 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Braid Termination
Crimp
Specifications Contact
Brass
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Finish
Nickel Plate
Specifications Mating Compatibility
Mates all Reynolds series 531 plug cable assemblies.
Specifications Max Allowable Leakage
10 µA
Specifications Mounting Notes
Allow clearance for 1/2-28 UNEF thread
Specifications Operating Temperature
-40 to 85 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
42 to 48 in-lbs
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Pressure
Flange, Insulator and contact seals allow for 30 psi differential pressure. Max. Leakage : 1 x 10-8 cc/sec He.
Specifications Receptacle Contact Materialfinish
Brass/Au
Specifications Receptacle Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
