531 Series Sealed Rear Mount Receptacle Cabled Connector
531 Series Sealed Rear Mount Receptacle Cabled Connector
SKU:HIG-f42f4d
Enhanced safety 15 kVDC rear mount connector with recessed contacts for minimal electrical shock risk.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
531 Series Sealed Rear Mount Receptacle Cabled Connector
$79.99
Quantity: 1
Claim Your Seller Account
531 Series Sealed Rear Mount Receptacle Cabled Connector
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience enhanced safety with the 531 Series Sealed Rear Mount Receptacle Cabled Connector. Designed to minimize the risk of electrical shock, this connector features recessed contacts for added user safety. The connectors come with a spring finger body contact ensuring a reliable ground circuit, further reducing the risk of electrical shock. With a voltage rating of 15 kVDC, this connector is tested and compliant with industry standards, offering reliability and safety in high voltage environments.
Product Specifications
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Type
Male
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass

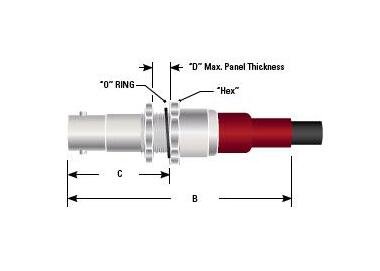

Dimensions B
2.875 in | 73.02 mm
Dimensions C
1.270 in | 32.26 mm
Dimensions D
0.312 in | 7.92 mm
Dimensions Hex
0.75 in | 19.05 mm
Specifications Accomodates
Type 'C' Cable (P/N 167-2669)
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Crimp
Specifications Contact
Brass
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Finish
Silver Plate
Specifications Maximum Leak Rate Helium
1 X 10 -6 cc/sec
Specifications Operating Temperature
-40 to 85 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Production Test
100% tested at 15KVDC for 10 sec. 2% lot tested at altitude to 21KVDC, 3 minutes min.
Specifications Receptacle Contact Materialfinish
Brass/Au
Specifications Receptacle Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
