The 531 SL Series Plug Kit is a high-voltage solution designed for user safety in demanding environments. Featuring recessed contacts that mitigate the risk of electrical shock, these connectors are crafted to exacting standards. With a voltage rating of 15 kVDC at 70,000 ft and a test voltage of 31 kVDC at altitude, this kit ensures reliable performance. The connectors boast beryllium copper contacts, nickel-plated finish, and a bayonet coupling style for secure connections. Tested at 15KVDC for 10 seconds, these standard parts are RoHS compliant and suitable for various applications.
Product Specifications
Body Properties Coupling Nut Material
Brass
Cable Preparation Insulation Resistance
106 MΩ
Contact Properties Contact Type
Female
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass

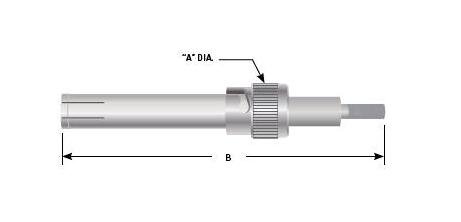

Dimensions A Diameter
0.625 in | 15.9 mm
Dimensions B
2.72 in | 69 mm
Specifications Accomodates
Type 'C' Cable (P/N 167-2669)
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Plug Bag Assembly
Specifications Braid Termination
Crimp
Specifications Contact
Beryllium Copper
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Finish
Nickel Plate
Specifications Mating Compatibility
Reynolds receptacle #167;-3555
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Production Test
100% tested at 15KVDC for 10 sec.
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
531 SL
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
