5360-95 Interchangeable Immersion & Suction Coolant Pump
5360-95 Interchangeable Immersion & Suction Coolant Pump
SKU:PRO-d10faf
Dependable 5360-95 Interchangeable Immersion & Suction Coolant Pump for efficient coolant and oil circulation in machine tools.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
5360-95 Interchangeable Immersion & Suction Coolant Pump
$699.99
Quantity: 1
Claim Your Seller Account
5360-95 Interchangeable Immersion & Suction Coolant Pump
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 5360-95 Interchangeable Immersion & Suction Coolant Pump by American Machine and Tool Company is a reliable and cost-effective solution for the circulation and spraying of coolants and cutting oils in machine tools. With a stainless steel impeller, cast iron construction, and carbon/ceramic shaft seal, this pump ensures durability and corrosion resistance. It features a 1/2 hp motor operating at 3450 rpm, and can handle up to 56 gpm of water flow with a maximum temperature of 180°F. Self-priming up to 2 feet, this pump must be mounted above the liquid for optimal performance.

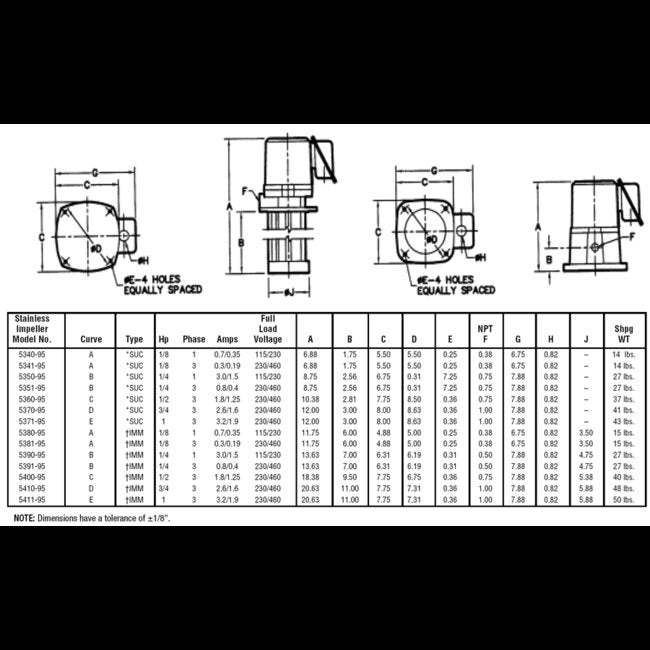

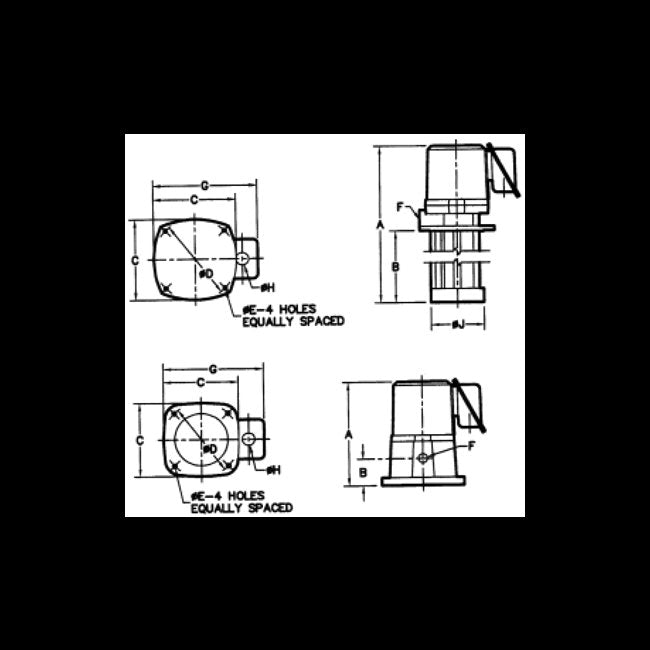

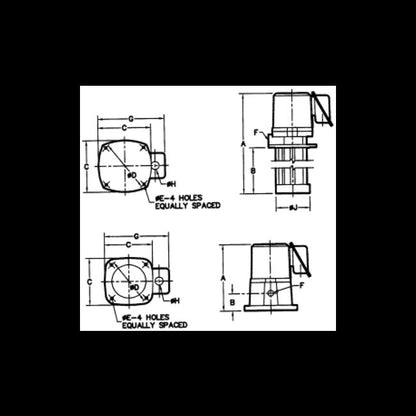

Product Specifications
Specifications 0
Cast Iron ConstructionStainless Steel ImpellerCarbon Steel ShaftCarbon/Ceramic Shaft SealSelf Priming up to 2' - Maximum Suction LiftPumps Must be Mounted Above Liquid
Specifications Curve
C
Specifications Customs Code
HTS Code 8413702005
Specifications Full Load Current
1.8/1.25 A
Specifications Full Load Voltage
230/460 V
Specifications Height
15 in | 381.00 mm
Specifications Impeller Material
Stainless
Specifications Inlet Size
3/4 in
Specifications Length
8 in | 203.20 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Water
56 gpm
Specifications Model
5360-95
Specifications Motor Rpm
3450 rpm
Specifications Old Fuji Pn
VKN-081A
Specifications Phase
3
Specifications Power
1/2 hp
Specifications Seal Material
Carbon/Ceramic
Specifications Sku
AT536095SP
Specifications Temperature
180 ºF
Specifications Toshiba Pn
OPF-250M
Specifications Type
Interchangeable Suction Pumps
Specifications Weight
16.33 | 36 | 36 lbs
Specifications Width
8 in | 203.20 mm
Specifications Yasukawa Pn
VFPC-251JF
