5370-95 Interchangeable Immersion & Suction Coolant Pump

Name: 5370-95 Interchangeable Immersion & Suction Coolant Pump
Brand: Springer Pumps, LLC
SKU: PRO-64e8ea
Price: 699.99 USD
Availability: OutOfStock

SKU:PRO-64e8ea

Dependable 5370-95 Interchangeable Coolant Pump for efficient coolant circulation in machining applications.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 5370-95 Interchangeable Immersion & Suction Coolant Pump by American Machine and Tool Company is a reliable and cost-effective solution for circulating and spraying coolants and cutting oils in machining applications. With a durable stainless steel impeller, cast iron construction, and a self-priming design, this pump ensures efficient operations. It features a 3/4 hp motor operating at 3450 RPM, capable of handling up to 56 gpm of water flow and temperatures up to 180ºF. Ideal for handling solids and fine contaminants, this pump is a standard replacement in the machine tool industry.

Product Specifications

Specifications 0

Cast Iron ConstructionStainless Steel ImpellerCarbon Steel ShaftCarbon/Ceramic Shaft SealSelf Priming up to 2' - Maximum Suction LiftPumps Must be Mounted Above Liquid

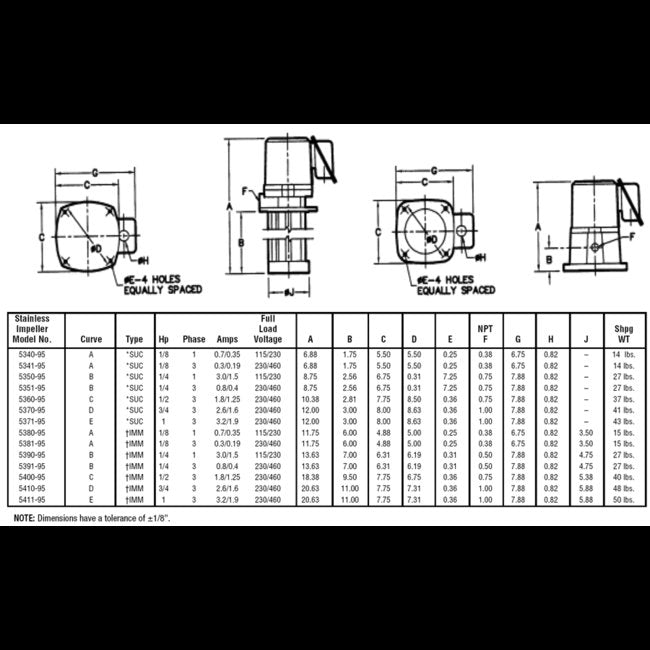

Specifications Curve

Specifications Customs Code

HTS Code 8413702005

Specifications Full Load Current

2.6/1.6 A

Specifications Full Load Voltage

230/460 V

Specifications Height

15 in | 381.00 mm

Specifications Impeller Material

Stainless

Specifications Inlet Size

1 in

Specifications Length

8 in | 203.20 mm

Specifications Manufacturer

American Machine and Tool Company

Specifications Max Flow Water

56 gpm

Specifications Model

5370-95

Specifications Motor Rpm

3450 rpm

Specifications Old Fuji Pn

VKN-091A

Specifications Phase

Specifications Power

3/4 hp

Specifications Seal Material

Carbon/Ceramic

Specifications Sku

AT537095SP

Specifications Temperature

180 ÂºF

Specifications Toshiba Pn

OPF-400M

Specifications Type

Interchangeable Suction Pumps

Specifications Weight

18.14 | 40 | 40 lbs

Specifications Width

8 in | 203.20 mm

Specifications Yasukawa Pn

VFPC-401JJF

5370-95 Interchangeable Immersion & Suction Coolant Pump
