54-Inch Load-5.83 lb Constant Force Spring
54-Inch Load-5.83 lb Constant Force Spring
SKU:CON-587a7d
High-quality 54-inch constant force spring with 5.83 lb load capacity, 301 Stainless Steel construction, and 20,000 cycles fatigue life. Ideal for aerospace, medical devices, defense, and electric motors.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
54-Inch Load-5.83 lb Constant Force Spring
$45.99
Quantity: 1
Claim Your Seller Account
54-Inch Load-5.83 lb Constant Force Spring
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

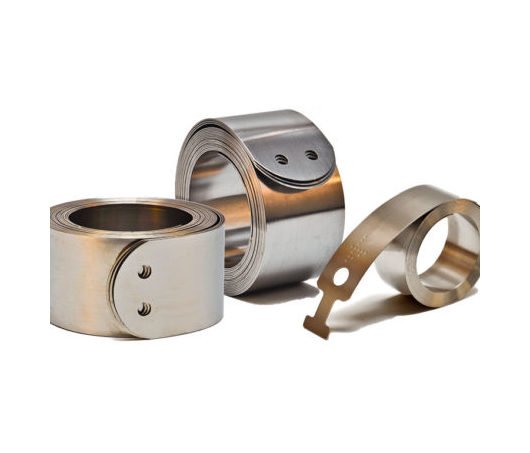

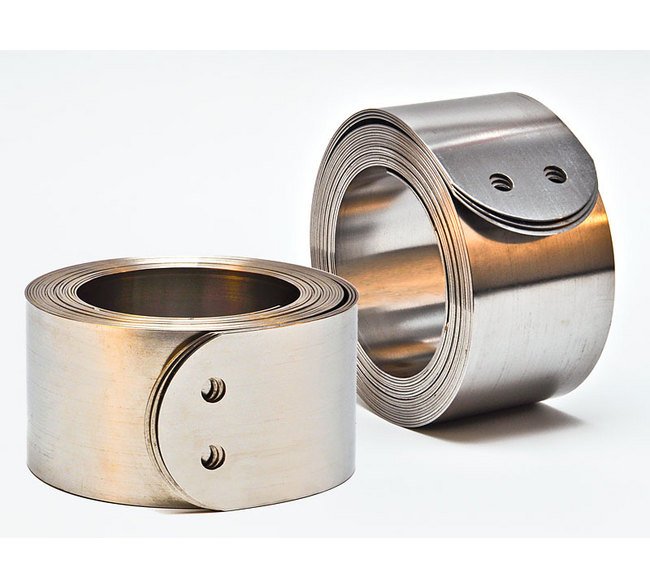

The 54-inch Constant Force Spring by John Evans Sons offers a load capacity of 5.83 lbs, with a maximum work deflection of 36 inches. Crafted from high-quality 301 Stainless Steel, this spring ensures durability and reliability in various applications. With a fatigue life of 20,000 cycles, precise design engineering, and smooth, uniform load distribution, this constant force spring is ideal for aerospace, medical devices, defense, and electric motors.
Product Specifications
Additional Information Additional Information
Our constant force springs and assemblies can eliminate costly and complicated motors, decreasing your device size and cost. These types of springs provide:Smooth, even, uniform load through entire length or travel (deflection)Strong force yield within small spacesExtensive linear rangeSmall package sizeAbility to easily mount to existing hardware
Design Considerations For Constant Force Springs Design Consider
There are many design factors that will affect the time and cost needed to manufacture your spring. Therefore, itâs important to work with a manufacturer like John Evansâ Sons that has the knowledge needed in the design phase.Mounting Methods: There are several mounting methods. Your application will determine which mounting method is best for your springâs design.Material: Material will certainly affect the design and project cost. High temperatures or corrosive environments will also affect the life of a spring and the required material.Diameter and Load: Length, material width, thickness, and coil diameter affect the springâs load. Increased loads can be obtained by using two or more constant force springs interwound, in tandem, or in other configurations.All of these, plus other technical considerations, need to be discussed and specified prior to creating prototypes. Our design engineering team can help ensure calculations and configurations are exact in the design phase.Our springs are most often used in the following industries and applications:AerospaceMedical devicesWindowsDefenseElectric motorsNot sure if constant force springs can provide the right action for your product? Contact John Evans' Sons for more information.
Note Note
The constant force springs listed below are available in small quantities from our stocking distributor, Stock Drive Products (SDP), or in larger quantities direct from our factory. For engineers and designers involved prototype development, who may require quick delivery of small quantities.
Specifications Band Length
54 in
Specifications Fatigue Life
20,000 cycles

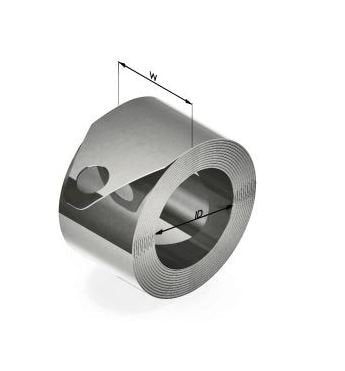

Specifications Free Inside Diameter Id
2.625 in
Specifications Load
5.83 lb
Specifications Materials
301 Stainless Steel

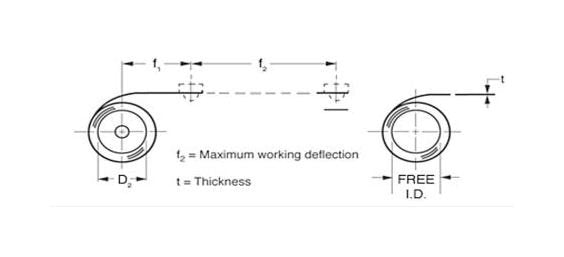

Specifications Maximum Work Deflection
36 in
Specifications Thickness
0.020 in
Specifications Width
1.250 in
