5450 Portable Air Filtration Prep Station
5450 Portable Air Filtration Prep Station
SKU:POR-9a6a1a
Enhance productivity and safety with our EPA 6H compliant Portable Air Filtration Prep Station. Ideal for hazardous location filtration needs.
Regular price
$3,399.99
Regular price
Sale price
$3,399.99
Unit price
per
Initiate Order
5450 Portable Air Filtration Prep Station
$3,399.99
Quantity: 1
Claim Your Seller Account
5450 Portable Air Filtration Prep Station
$3,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

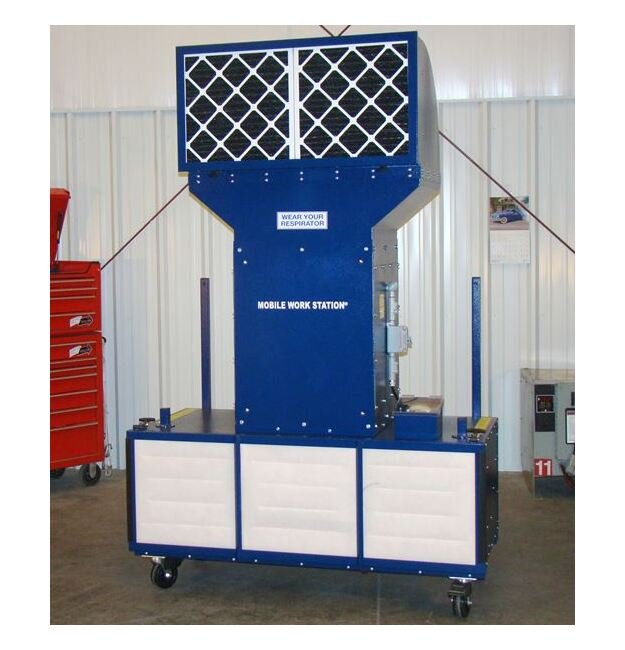

The 5450 Portable Air Filtration Prep Station is a versatile solution for hazardous location filtration needs. With fully adjustable filter racks and EPA 6H compliance, this portable system ensures efficient removal of airborne particulates, fumes, and VOCs. Its durable construction, low maintenance design, and optional fire suppression system make it ideal for institutional and industrial settings.
Product Specifications
Durable Construction 0
Manufactured using 14 gauge powder coated steel for long lasting durability and performance.
Efficient Filtration 0
Uses standard sized 20" x 20" filters, which are easy to replace. The standard filter set included for its multi-stage filtration system has two sets particulate filters and two sets carbon filters for the removal of odors and VOC's. The 3-Ply Link Panel filters have tested at 99.78 % efficient on paint overspray. In addition, there is a magnehelic gauge to monitor filter efficiency.
Low Maintenance 0
There are no bearings to grease or belts to change with its sealed direct drive motor.
Options 0
Units can be ordered with optional fire suppression system and/or attached curtain enclosure system. Units which include the attached curtain enclosure system have been certified EPA 6H compliant.
Safety 0
Hazardous location motor, hazardous location controls, aluminum fan wheel and aluminum inlet cone.
Savings 0
The recirculation design eliminates the need for ventilation modifications or make-up air systems, and reduces energy costs by utilizing existing heated or cooled air. The backward curved non-overloading fan wheel is constructed with hollow airfoil blades. The fan wheels are statically and dynamically balanced to provide higher airflow performance at less horsepower, and with minimum air noise.
Specifications Certification
EPA 6H compliant
Specifications Equipment Dimensions
61 x 32 x 94 1/2 in
Specifications Filter Size
20 x 20 in
Specifications Power Rating
1 1/2 hp
Specifications Power Requirement Frequency
60 Hz
Specifications Power Requirement Phase
Single
Specifications Power Requirement Voltage
115 V | 230 V
