55.6 Inch Integral Bonnet Needle Valve
55.6 Inch Integral Bonnet Needle Valve
SKU:SIN-44014a
Reliable SINV Series 55.6 Inch Needle Valve with versatile stem types, tested for performance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
55.6 Inch Integral Bonnet Needle Valve
$189.99
Quantity: 1
Claim Your Seller Account
55.6 Inch Integral Bonnet Needle Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SINV Series 55.6 Inch Integral Bonnet Needle Valve is designed for reliable performance in a wide range of temperatures and pressures. With temperature ratings ranging from -65 to 600 °F, this valve ensures optimal functionality with various packing materials. Its compact design, low operating torques, and versatility in flow patterns make it ideal for diverse applications. The valve is panel mountable and offers the convenience of three stem types and handle options. Tested to stringent standards, it boasts a max allowable leak rate of 0.1 cm³/min, ensuring dependable operation.
Product Specifications
Features Features

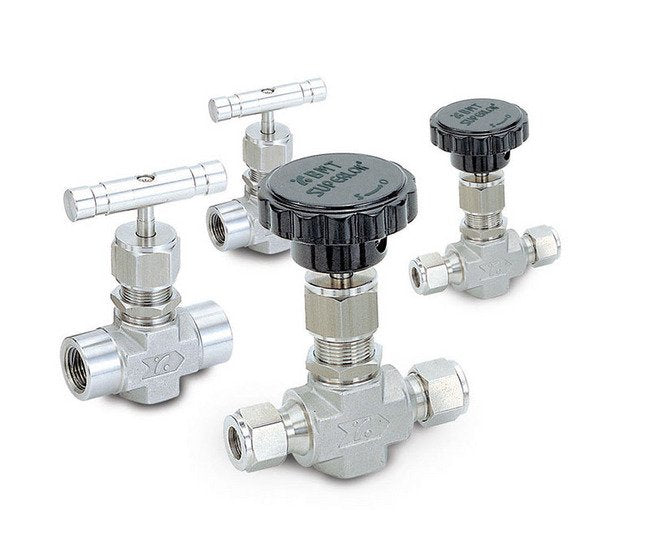

Compact designLow operating torquesPanel mountableStraight and angle flow patternsBar and round knob handle are availableThree stem type are available
Handle Handle
316 stainless steel and alloy 400 body valve - Stainless steel bar handles are standard.Brass body and Soft seat stem valve - Black round knob handles are standard.Anodized black aluminum bar handles are optional.
Note Note

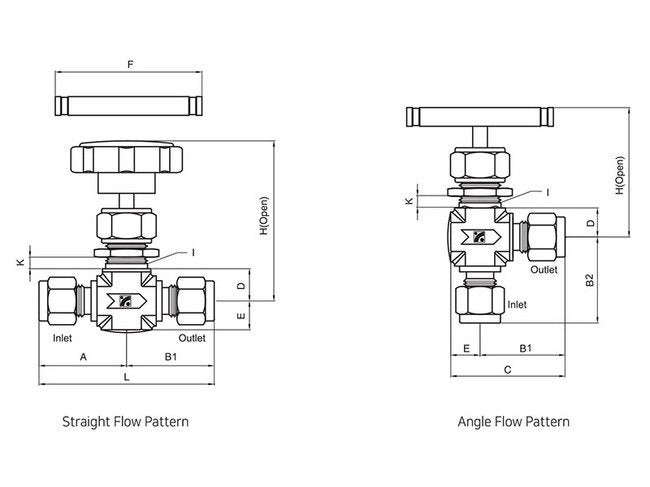

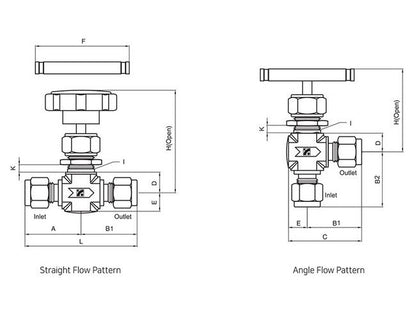

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel) | Brass
Technical Specs Dimension A
28.7 mm
Technical Specs Dimension B1
26.9 mm
Technical Specs Dimension B2
28.7 mm
Technical Specs Dimension C
39.6 mm
Technical Specs Dimension D
12.7 mm
Technical Specs Dimension E
12.7 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H
63.5 mm
Technical Specs Dimension I
20.0 mm
Technical Specs Dimension L
55.6 mm
Technical Specs End Connection Size
1/8 to 3/4 in | 3 to 18 mm
Technical Specs Flow Coefficients Cv
0.09 to 1.80
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Orifice Size
6.3 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Packing
PTFE packing is standard. PEEK packing is optional.
Technical Specs Stem Type
Regulating Stem | Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating For Alloy 400 With Polyether
-65 to 500 ºF | -53 to 260 ºC
Technical Specs Temperature Rating For Alloy 400 With Polytetraf
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating For Brass
-65 to 400 ºF | -53 to 204 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating For Polyether Ether Ketone Pe
-65 to 600 ºF | -53 to 315 ºC
Technical Specs Temperature Rating For Polytetrafluoroethylene P
-65 to 450 ºF | -53 to 232 ºC
Testing Testing
Each and every Valve is tested with nitrogen at 1000 psig (69 bar).Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is available upon request
