55° Diamond Negative Indexable Key, 0.388/0.394 in
55° Diamond Negative Indexable Key, 0.388/0.394 in
SKU:TUR-f05049
Precision-engineered 55° Diamond Negative Indexable Tool for turning with 0.195/0.205 in thickness, 55° angle, and key size of 0.388/0.394 in.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
55° Diamond Negative Indexable Key, 0.388/0.394 in
$49.99
Quantity: 1
Claim Your Seller Account
55° Diamond Negative Indexable Key, 0.388/0.394 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 55° Diamond Negative Indexable is expertly crafted for precise turning operations, featuring a thickness of 0.195/0.205 in, an inscribed circle of 0.512/0.522 in, and a sharp 55° angle. Designed with a key size of 0.388/0.394 in, this tool ensures efficient performance and durability. Grade availability options allow customization based on specific requirements, meeting the highest industry standards.
Ready to Grow Without Cash Flow Constraints?

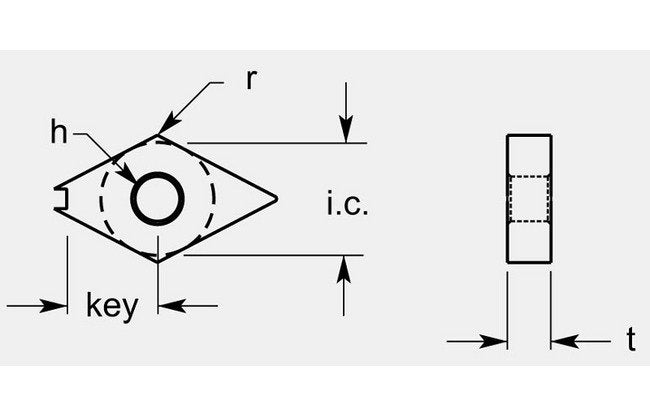

Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.210 in
Dimensional Specification Inscribed Circle Ic
0.512/0.522 in
Dimensional Specification Key
0.388 / 0.394 in
Dimensional Specification Radius R
0.012 in
Dimensional Specification Thickness T
0.195 / 0.205 in
Grade Availability Grade Availability
Available on Request
