55 Micrometer JET Rapid Printhead
55 Micrometer JET Rapid Printhead
SKU:JET-6f5c12
High-speed 55 µm JET Rapid Printhead for precise and fast industrial printing needs.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
55 Micrometer JET Rapid Printhead
$499.99
Quantity: 1
Claim Your Seller Account
55 Micrometer JET Rapid Printhead
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

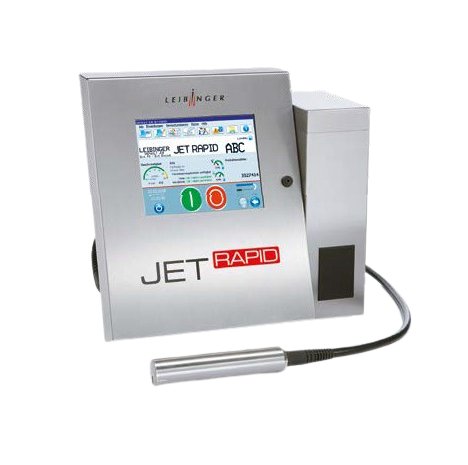

The 55 Micrometer JET Rapid Printhead is designed for high-speed applications, offering up to 30% faster printing than standard models. With a nozzle size of 55 µm, this printhead delivers precise and clear printing for cables, wires, hoses, and pipes. It features a wide range of ink compatibility, multiline printing capabilities, and adjustable font heights and widths. The printhead is equipped with a color touchscreen display for easy operation and supports various languages for user convenience. Ideal for industrial settings requiring fast and reliable printing solutions.
Product Specifications
Accessories Accessories
Product detector, incremental encoder, printer stand, printhead brackets, alarm lamps, etc.Software for remote control and multi-head control
Data Managementsecurity Data Managementsecurity
Data buffer in case of power failureFile managerJob management with saved machine parametersData logging, production logUpload and download of jobs and graphics from USB stick or over networkSelect jobs (1023 jobs can be selected via the PLC or scanner)
Handlingdata Input Handlingdata Input
10.4" color TFT touchscreen display (SVGA)Create and edit jobs during productionUser-defined button for direct accessMenu languages: European languages, Vietnamese, Arabic, Chinese, Thai, Korean, Cyrillic, Persian, etc.Integrated font and graphics editorIllustrated operator instructionsAlternative control using the data interface (serial, Ethernet)Country-specific on-screen key padOperation optionally using mouse or key padComprehensive self-diagnosis and status display with easy-to-understand text, help function, printer status displayStorage of any number of jobs and graphicsPassword function and service menuWindows-based interface, WYSIWYG, real-time display updatesRemote control via VNC
Inks Inks
Which inks are available depends on the printer type and the selected optionsInk consumption: up to 160 million characters/l (matrix 5 x 5 / nozzle 50 μm)Solvent consumption: Can be reduced to less than 1.2 ml/hour using EcoSolv (depending on nozzle size, solvent base and ambient temperature)Various colored inks and soft pigmented inksFast-drying solvent inks (<1 sec)
Interfaces Inputsoutputs Interfaces Inputsoutputs
Product detector input PNP/NPN 24 V, FIFO bufferedIncremental encoder input (TTL 5 V, HTL 24V, RS422 5 V)9 digital inputs and 8 digital outputs. Freely selectablePrinter alarm, low fluid, print ready, print finished, external job selection, etc.Serial port RS232 up to 115,200 baudUSB portEthernet (industry standard M12D), script protocolSensor for product monitoring and speed measurementOptional: Special interface for connecting multiple printers
Leibinger Hydraulic System Leibinger Hydraulic System
Low maintenance diaphragm pumps with optimized on-timeFully automatic viscosity and pressure controlThermally isolated hydraulicsNo external compressed air supply necessaryAutomatic interval functionEcoSolv - solvent recycling system (optional)
Power Ratings And Ambient Conditions Frequency
50 to 60 Hz
Power Ratings And Ambient Conditions Maximum Non Condensing Rela
90 %
Power Ratings And Ambient Conditions Temperature Range
5 to 45 ºC
Power Ratings And Ambient Conditions Power
20 W
Power Ratings And Ambient Conditions Voltage
100 to 240 V
Printheads Printheads Type
Flexible break-resistant umbilical, length: 3 mStainless steel cabinetFully automatic "SEALTRONIC" nozzle and gutter sealFully automatic drop charging, drop break offAny installation location, even for overhead applicationsSafety switch for locking the printheadOptions: head ventilation, umbilical at 45º to 90º angle, various printhead versionsAutomatic inkjet monitoring
Print Outputfunctions Print Outputfunctions
Country and industry-specific fonts: Arabic, Cyrillic, Chinese, Persian, etc.Print modes: from 3 x 7 to 32 x 20, special fonts, user-programmable fonts, vertical printing, line mode.Multiline fonts (1 to 5 lines).Fonts and graphics can be positioned and combined in print jobs as requiredProportional function for all fontsAdjustable font height and font widthAll standard barcodes and DataMatrix codes (ECC 200), GS1-DataMatrix (EAN/ECC), QR code, PPN code (only JET Rapid)Only barcodes up to a print height of 7 dots with Speed Plus optionTime, auto-adjustable date, auto-adjustable expiration date, weekdays, calendar weeks, Julian calendar, shift identificationReplacements: all date, time and counter functions can be set using user-programmed replacements32 individually programmable counters, consecutive numbering, production counter, meter marking with "Meter Go" functionUser-programmable graphics/logos can be created in the integrated editorMultistage contrast and bold function, print repetition, print delay, backward print, rotation/mirroring of text, inverse, reverse and alternating prints (object-dependent)Dynamic backward printing for traversing linesProgrammable batch production and interlinking of multiple jobs"External text" function from scanner or interfaceProcessing of variable data from external files on USB stick or interfaceFunction to stop printing when preselected amount has been reachedProduct jam detection, product position monitoringAutostart functionPrompt function (quick access)Solvent saving modeSelf-test function
Storage Tank Storage Tank
Capacity of non-pressurized ink and solvent storage tank: 1.3 l, can be topped up during productionFill level display with fully automated monitoringDisplay for pending printouts
Technical Specs Available Print Modes
Same print modes as JET3upUp to 32 dots
Technical Specs Characters Per Inch Cpi
10 cpi at 413 m/min
Technical Specs Character Height
1.0 to 24 mm
Technical Specs Compressed Air Required
Not required. Available as an option.

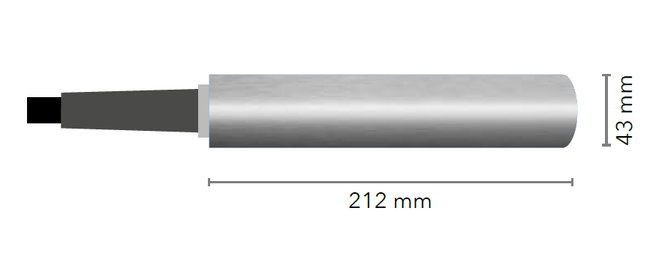

Technical Specs Diameter
43 mm
Technical Specs Length
212 mm
Technical Specs Maximum Print Speed
Up to 30 % faster than the standard JET3up | Up to 600 m/min
Technical Specs Nozzle Size
55 µm
Technical Specs Oscillator Frequency
128 kHz
Technical Specs Printable Lines
Multiline/Up to 5 Lines
Technical Specs Print Mode
7 x 5 dots
Technical Specs Type
JET Rapid
Technical Specs Umbilical Length
3 m
Weights And Protection Classes Cabinet Weight
20.5 kg
Weights And Protection Classes Optional Protection Class
Ingress Protection (IP65)
Weights And Protection Classes Printhead Weight
1.5 kg
Weights And Protection Classes Protection Class
Ingress Protection (IP54)
