55 Series: Keyslot Chassis Mount PCB Support (Locking)
55 Series: Keyslot Chassis Mount PCB Support (Locking)
SKU:01C-ac2463
Secure and durable Keyslot Chassis Mount PCB Support (.375 inches) for reliable circuit board mounting. RoHS compliant. Temp Range: -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
55 Series: Keyslot Chassis Mount PCB Support (Locking)
$29.99
Quantity: 1
Claim Your Seller Account
55 Series: Keyslot Chassis Mount PCB Support (Locking)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

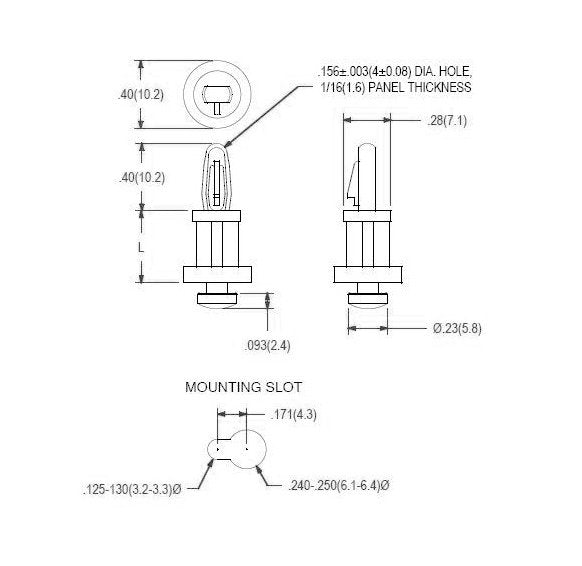

The 55 Series Keyslot Chassis Mount PCB Support features a secure locking mechanism for added stability. Crafted from high-quality Nylon 66 UL94V-2 material, this support is durable and RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), it ensures reliable performance in diverse environments. Measuring .375 inches (9.5mm), this support is compatible with .156 PCB holes, offering precise alignment and support for circuit boards. Ideal for industrial applications requiring secure PCB mounting solutions.
Product Specifications
Specifications L 015
.375 (9.5) inches (mm)
