55º Diamond Negative Indexable Turning Blank, Key 0.412 / 0.418 in
55º Diamond Negative Indexable Turning Blank, Key 0.412 / 0.418 in
SKU:TUR-954df9
Precision 55º Diamond Negative Indexable Turning Blank for accurate turning. Custom grades available upon request.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
55º Diamond Negative Indexable Turning Blank, Key 0.412 / 0.418 in
$39.99
Quantity: 1
Claim Your Seller Account
55º Diamond Negative Indexable Turning Blank, Key 0.412 / 0.418 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 55º Diamond Negative Indexable Turning Blank provides precision cutting capabilities with a Thickness of 0.195 / 0.205 in, Inscribed Circle of 0.512/0.522 in, and an Angle of 55º. Crafted with a Radius of 0.012 in, it ensures superior performance for turning applications. Grade Availability can be customized based on requirements, ensuring top-notch quality for your machining needs.

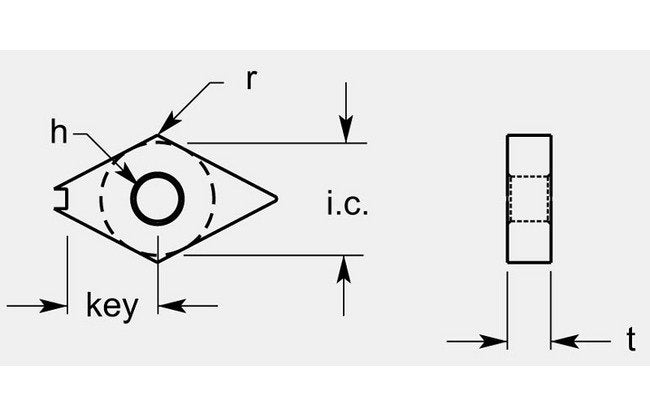

Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.210 in
Dimensional Specification Inscribed Circle Ic
0.512/0.522 in
Dimensional Specification Key
0.412 / 0.418 in
Dimensional Specification Radius R
0.012 in
Dimensional Specification Thickness T
0.195 / 0.205 in
Grade Availability Grade Availability
Available on Request
