56 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fans

56 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fans

SIL-6f83f8

N/A

$49.99
$49.99
Sale

Initiate Order

56 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fans

56 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fans

$49.99

Quantity: 1

Claim Your Seller Account

56 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fans

56 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fans

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 1500
32 dB
Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 3000
33 dB
Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 4500
32 dB
Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 6000
31 dB
Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 1500
11 dB
Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 3000
10 dB
Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 4500
9 dB
Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 6000
8 dB
Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 1500
28 dB
Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 3000
29 dB
Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 4500
30 dB
Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 6000
29 dB
Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 1500
18 dB
Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 3000
16 dB
Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 4500
17 dB
Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 6000
16 dB
Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 1500
16 dB
Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 3000
17 dB
Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 4500
17 dB
Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 6000
16 dB
Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 1500
27 dB
Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 3000
26 dB
Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 4500
25 dB
Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 6000
24 dB
Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 1500 F
4 dB
Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 3000 F
3 dB
Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 4500 F
2 dB
Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 6000 F
1 dB
Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 1500
12 dB
Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 3000
13 dB
Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 4500
12 dB
Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 6000
11 dB

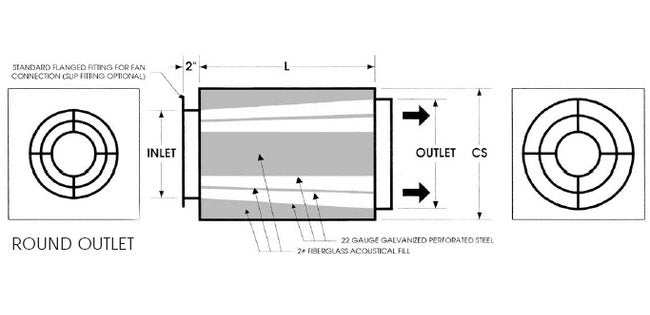

Specifications Casing Side
56 in
Specifications Inlet Diameter
49 in
Specifications Length
42 in
Specifications Maximum Air Flow
46000 ft³/min
Specifications Minimum Air Flow
12000 ft³/min
Specifications Outlet Diameter
39.50 in
Specifications Shape Of Inletoutlet
Round Outlet
Specifications Type
Acoustical
