57 Series Reverse Locking PCB Support
57 Series Reverse Locking PCB Support
SKU:01C-537b65
Secure and stable reverse locking PCB support for .063 PCB Thickness. Nylon 66 UL94V-2 material, RoHS compliant, -40 to 185 F temp range.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
57 Series Reverse Locking PCB Support
$49.99
Quantity: 1
Claim Your Seller Account
57 Series Reverse Locking PCB Support
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

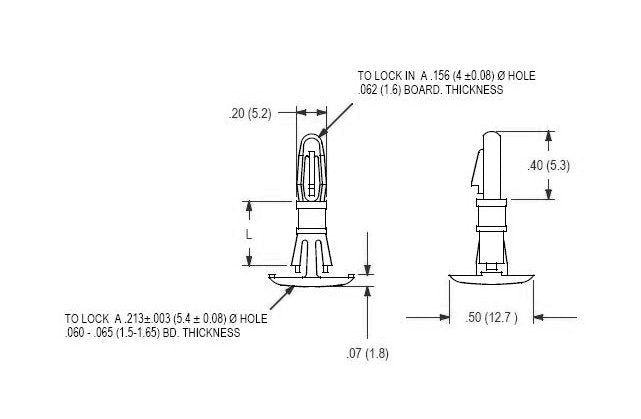

The 57 Series Reverse Locking PCB Support offers reliable support for circuit boards with a .063 PCB Thickness and .063 Chassis Thickness. Made of Nylon 66 UL94V-2 material, this support is RoHS compliant and features a temperature range of -40 to 185 F (-40 to 85 C). The .156 Board Hole x .213 Chassis Hole design ensures a secure fit, while the reverse locking mechanism adds stability to your PCB assemblies. Each pack contains 1000 supports, providing cost-effective solutions for your PCB installation needs.
Product Specifications
Specifications L 015
.625 (15.9) inches (mm)
