58 Series PCB Supports: .158 Board Hole x .236 Chassis Hole
58 Series PCB Supports: .158 Board Hole x .236 Chassis Hole
SKU:01C-435712
Secure your circuit boards with our 58 Series PCB Supports designed for .063 PCB Thickness. RoHS compliant and versatile for various temperature ranges.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
58 Series PCB Supports: .158 Board Hole x .236 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
58 Series PCB Supports: .158 Board Hole x .236 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your circuit board assembly with our 58 Series PCB Supports. These reverse locking board supports are designed for .063 PCB Thickness and .031 to .047 Chassis Thickness, ensuring secure mounting. Made from Nylon 66 UL94V-2 material, with UL94V-0 option available for higher fire resistance. RoHS compliant and suitable for a temperature range of -40 to 185 F (-40 to 85 C), these board supports come in a natural color. Each pack contains 1000 supports for efficient installation.
Product Specifications

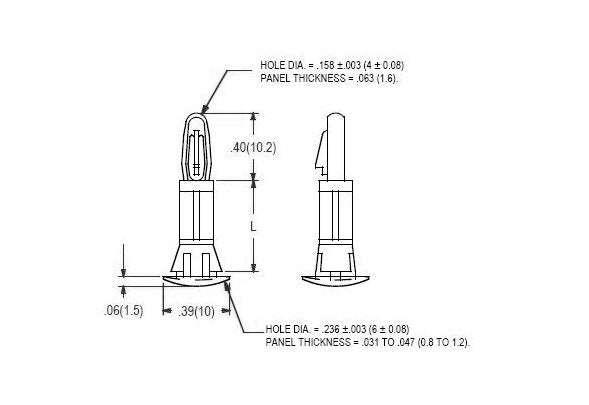

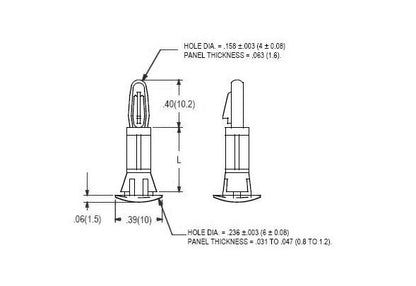

Specifications L 015
.312 (7.9) inches (mm)
