58 Series Reverse Locking Board Support
58 Series Reverse Locking Board Support
SKU:01C-f44ce8
Secure your PCB with the 58 Series Reverse Locking Board Support; RoHS compliant and heat-resistant. Pack of 1000.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
58 Series Reverse Locking Board Support
$49.99
Quantity: 1
Claim Your Seller Account
58 Series Reverse Locking Board Support
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

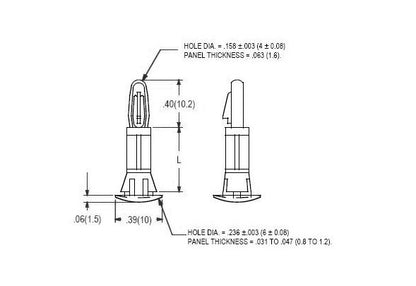

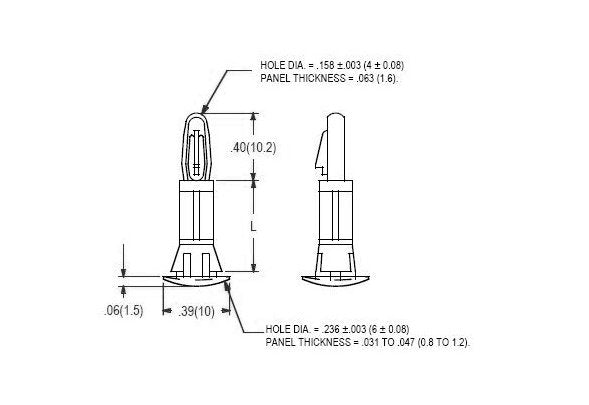

The 58 Series Reverse Locking Board Support is designed for .063 PCB Thickness and .031 to .047 Chassis Thickness applications. Made of Nylon 66 UL94V-2 material, this PCB support is RoHS compliant and operates within a temperature range of -40 to 185 F (-40 to 85 C). It features a .375 inches (9.5mm) L +/- .015 size specification, providing reliable support for circuit boards while ensuring secure attachment to chassis. Each pack contains 1000 pieces in a natural color finish.
Product Specifications
Specifications L 015
.375 (9.5) inches (mm)
