59 Series Reverse Locking PCB Support .158 Board Hole x .213 Chassis Hole
59 Series Reverse Locking PCB Support .158 Board Hole x .213 Chassis Hole
SKU:01C-78189d
Securely mount PCBs with the 59 Series Reverse Locking Support. Nylon 66 construction, RoHS compliant, ASTM D 4066 PA111 approved, -40 to 185 F temp range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
59 Series Reverse Locking PCB Support .158 Board Hole x .213 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
59 Series Reverse Locking PCB Support .158 Board Hole x .213 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

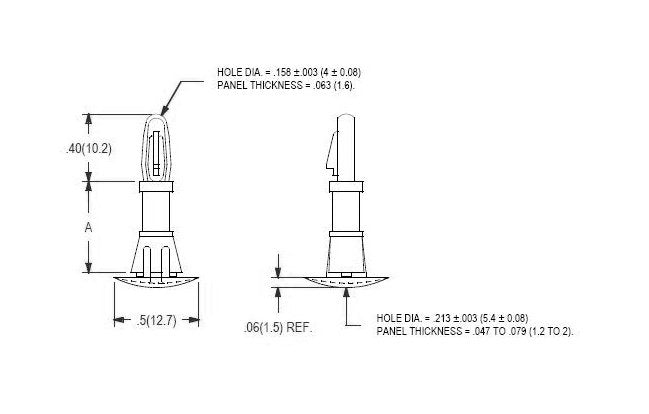

The 59 Series Reverse Locking PCB Support is designed for precise mounting with a .158 board hole and .213 chassis hole, compatible with PCB thicknesses ranging from .063 to .079. Manufactured from Nylon 66 UL94V-2 material (UL94V-0 available), this support meets ASTM D 4066 PA111 and RoHS compliance. With a temperature range of -40 to 185 F (-40-85 C), this support ensures secure and reliable installation, making it ideal for circuit board applications.
Product Specifications
Specifications A 015
.312 (7.9) inches (mm)
